10MK4E - Delta Electronics

Description: Power Line Filters High Performance, PCB Mounting Filter, Single, 250VAC, 10A, Chassis, Lug-Lug

Download 10MK4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10MK4E - Delta Electronics - PCB symbol
click to zoom
PCB Footprints

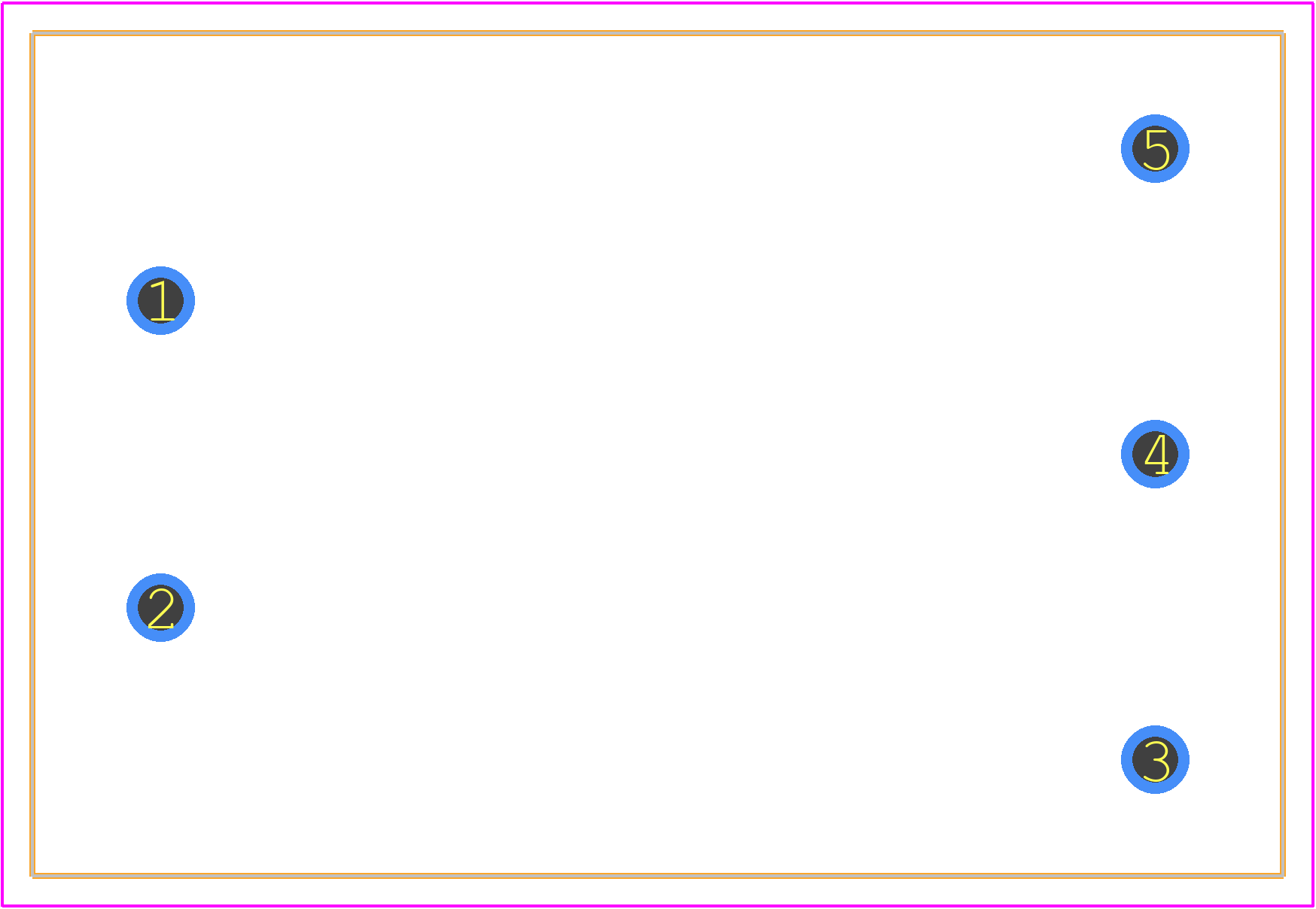

10MK4E - Delta Electronics PCB footprint - Other - Other - 10MK4E-2
click to zoom
3D Models
10MK4E - Delta Electronics - 3D model - Other - 10MK4E-2
click to zoom

10MK4E Details

  • Manufacturer Part Number:

    10MK4E

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    8.2

  • Approvals:

    UL; CSA; VDE

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Frequency-Max:

    30 MHz

  • Frequency-Min:

    0.15 MHz

  • Height:

    20 mm

  • High Pot:

    2250 V

  • Insertion Loss@Frequency-Max:

    25 dB

  • Insertion Loss@Frequency-Min:

    12 dB

  • Leakage Current-Max:

    0.4 mA

  • Length:

    41.5 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Operating Frequency:

    50/60Hz Hz

  • Rated Current:

    10 A

  • Rated Voltage:

    250 V
