110-102 footprint, schematic symbol and 3D model by SPEC Sensors, LLC

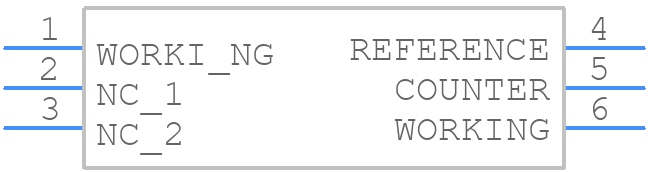

Symbol

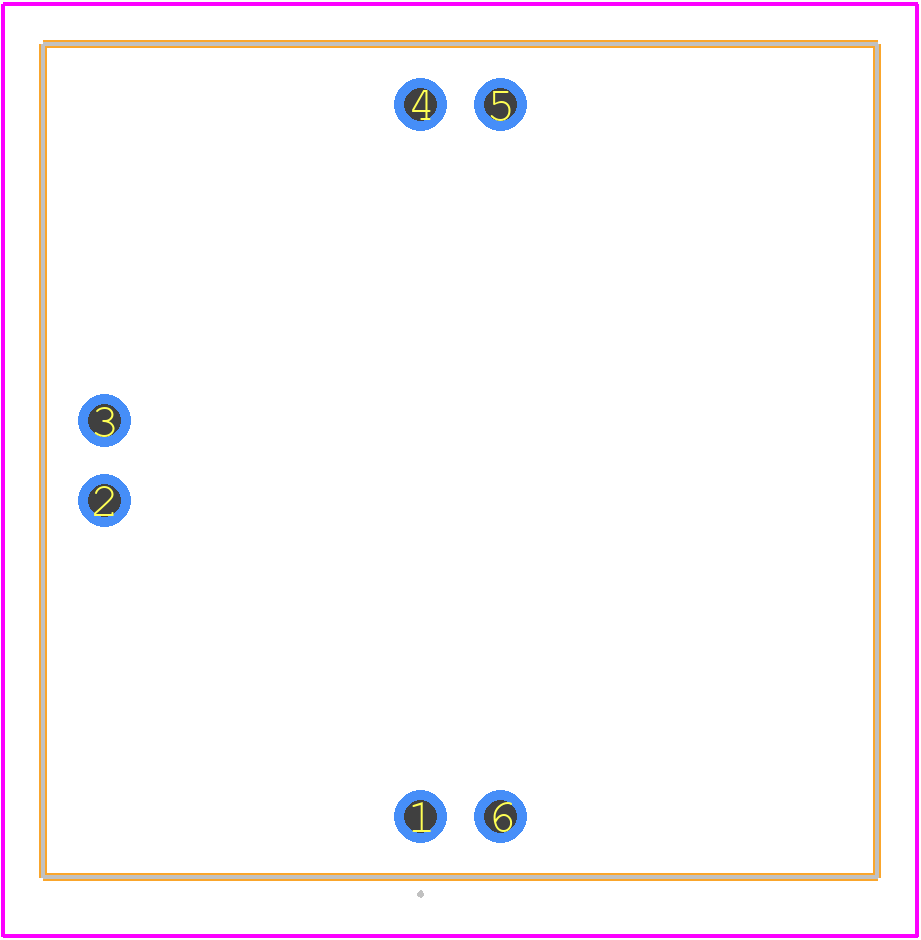

PCB Footprints

3D Models

110-102 Details

The recommended operating temperature range for the 110-102 sensor is -20°C to 50°C. However, it can operate up to 85°C with reduced accuracy and lifespan.
The 110-102 sensor is designed to operate in humid environments, but it's not recommended to expose it to condensation or direct water contact. If condensation occurs, ensure the sensor is dry before operating it again.
The response time of the 110-102 sensor is typically around 10-30 seconds, depending on the gas concentration and environmental conditions.
No, the 110-102 sensor is not designed for use in explosive or hazardous environments. It's intended for general-purpose gas detection applications only.
The 110-102 sensor should be calibrated every 6-12 months, depending on usage and environmental conditions. It's recommended to follow the manufacturer's calibration guidelines and procedures.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 110-102 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 110-1, or try a keyword search, such as Visible LEDs
