The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, the 110-41-640-41-001000 is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow proper mounting and screw torque procedures to ensure reliability.
The 110-41-640-41-001000 is designed to operate in a wide temperature range (-40°C to 105°C) and can withstand some level of humidity, but it's not designed for extreme environmental conditions. For harsh environments, consider using connectors with specialized coatings or sealing.
While the datasheet specifies 24-20 AWG wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's recommended to consult with Mill-Max Mfg Corp or a qualified engineer to ensure proper wire termination and reliability.
Yes, to ensure reliable connections and prevent damage, follow the recommended PCB layout guidelines provided by Mill-Max Mfg Corp, including keeping the PCB surface clean and dry, and using a solder mask to prevent solder bridging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
110-41-640-41-001000 Overview

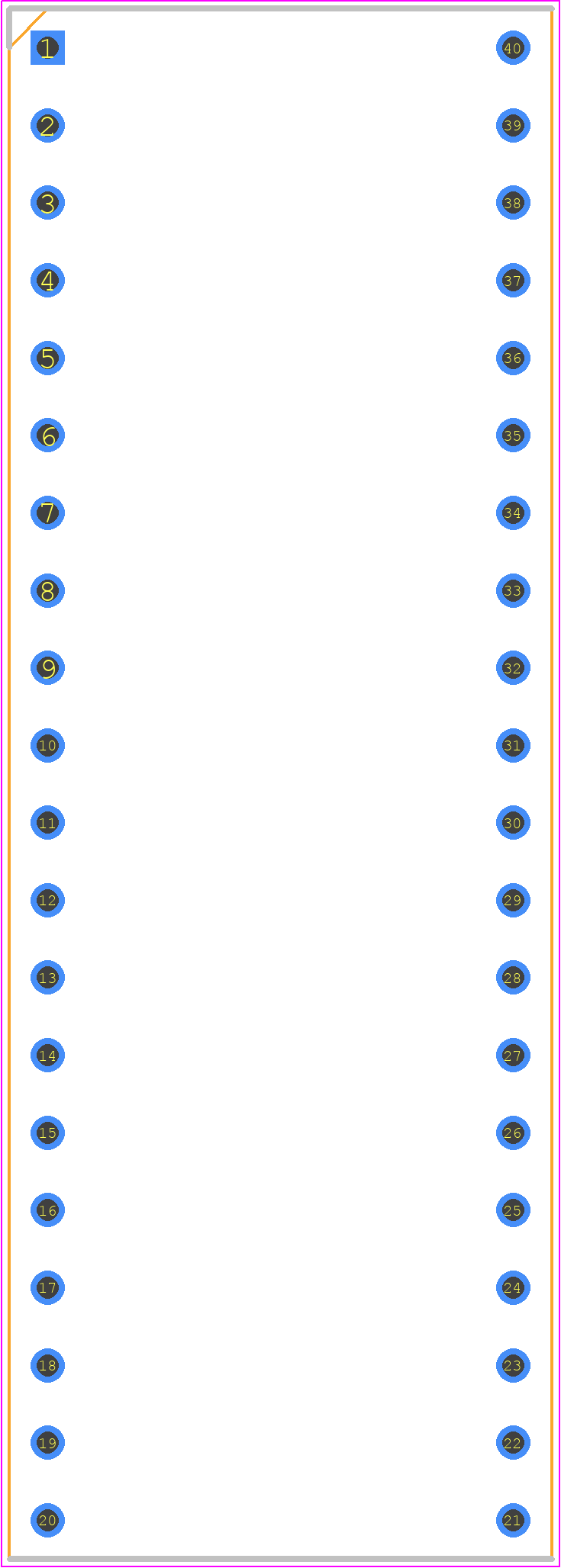

Use the download button to access the 110-41-640-41-001000 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 110-4,
or try a keyword search, such as Sockets and Chip Carriers
