110-91-628-41-001000 footprint, schematic symbol and 3D model by Mill-Max

Symbol

click to zoom

PCB Footprints

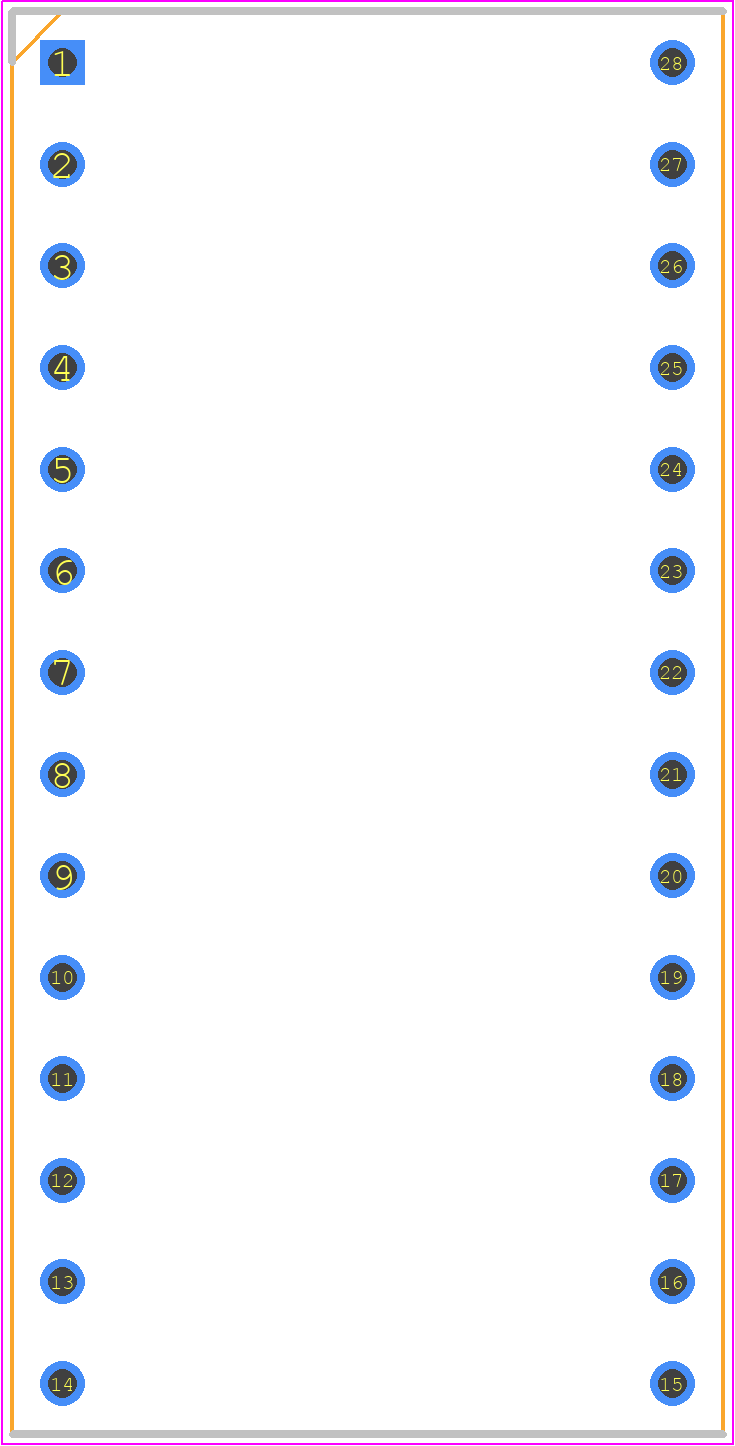

110-91-628-41-001000 - Mill-Max PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 110-91-628-41-001000

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 110-91-628-41-001000
Part Number 110-91-628-41-001000
Manufacturer Mill-Max
Pin Count 28
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 110-91-628-41-001000
Released Date Sep 8, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

110-91-628-41-001000 Details

Manufacturer Part Number:
110-91-628-41-001000
Pbfree Code:
No
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
Mill-Max Mfg Corp
YTEOL:
5.63
Additional Feature:
DIP SOCKET
Contact Configuration:
RECTANGLE
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Material:
NOT APPLICABLE
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP28
Housing Material:
POLYETHYLENE
JESD-609 Code:
e0
Number of Contacts:
28
