110-99-628-41-001000 footprint, schematic symbol and 3D model by Mill-Max

Symbol

click to zoom

PCB Footprints

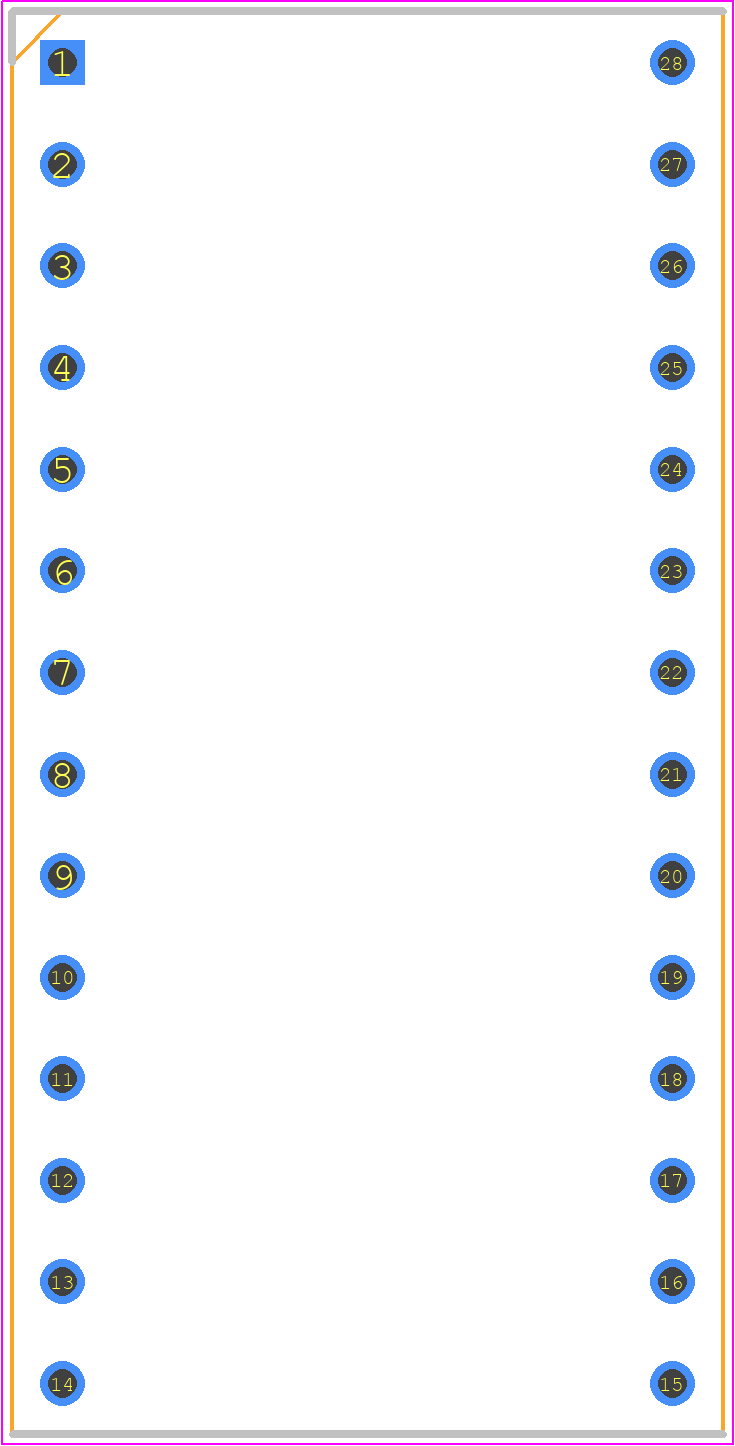

110-99-628-41-001000 - Mill-Max PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 28-Lead Dip

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 110-99-628-41-001000
Part Number 110-99-628-41-001000
Manufacturer Mill-Max
Pin Count 28
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 28-Lead Dip
Released Date Aug 31, 2023
Last Modified Date Sep 1, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

110-99-628-41-001000 Details

Manufacturer Part Number:
110-99-628-41-001000
Pbfree Code:
No
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
Mill-Max Mfg Corp
YTEOL:
5.63
Additional Feature:
DIP SOCKET
Contact Configuration:
RECTANGLE
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Material:
NOT APPLICABLE
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP28
Housing Material:
POLYETHYLENE
JESD-609 Code:
e0
Number of Contacts:
28

110-99-628-41-001000 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, the 110-99-628-41-001000 is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
The operating temperature range for the 110-99-628-41-001000 is -55°C to 125°C (-133°F to 257°F), making it suitable for use in a wide range of environments.
Yes, the 110-99-628-41-001000 is designed for automated assembly and can be easily integrated into high-volume production lines.
The 110-99-628-41-001000 has a mating cycle life of 500-1000 cycles, depending on the application and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

110-99-628-41-001000 Overview

Use the download button to access the 110-99-628-41-001000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 110-9, or try a keyword search, such as Sockets and Chip Carriers
