Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1101M2S3ASE2
- Part Number 1101M2S3ASE2
- Manufacturer LITTELFUSE
- Pin Count 5
- Part Category Switch
- Package Category Other

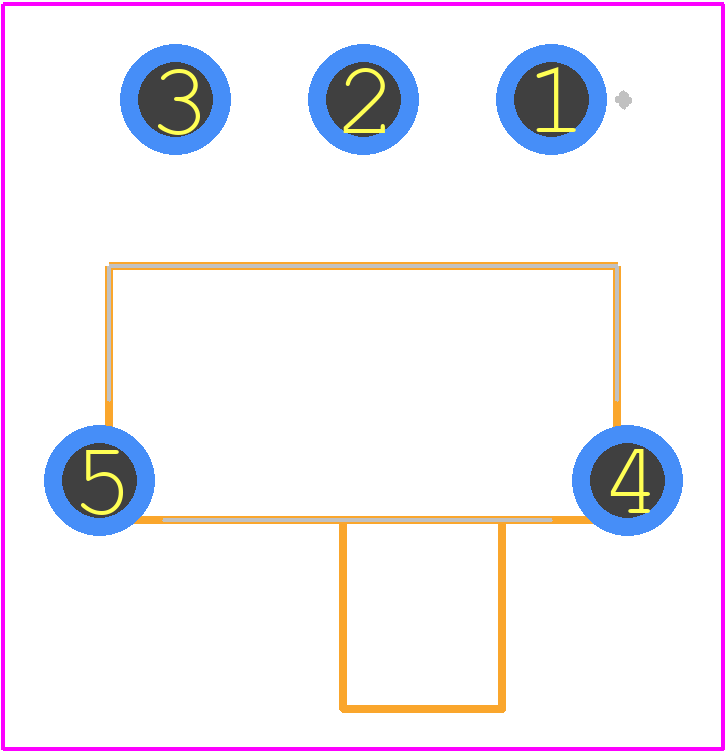

- Footprint Name Other - 1101M2S3ASE2-1
- Released Date Oct 2, 2018
- Last Modified Date Apr 10, 2026 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
1101M2S3ASE2 Details
-
Manufacturer Part Number:
1101M2S3ASE2
-
Manufacturer:
Littelfuse Inc
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1101M2S3ASE2 Overview
Use the download button to access the 1101M2S3ASE2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 1101M,
or try a keyword search, such as Slide Switches
