111-024-213L001 footprint, schematic symbol and 3D model by NorComp

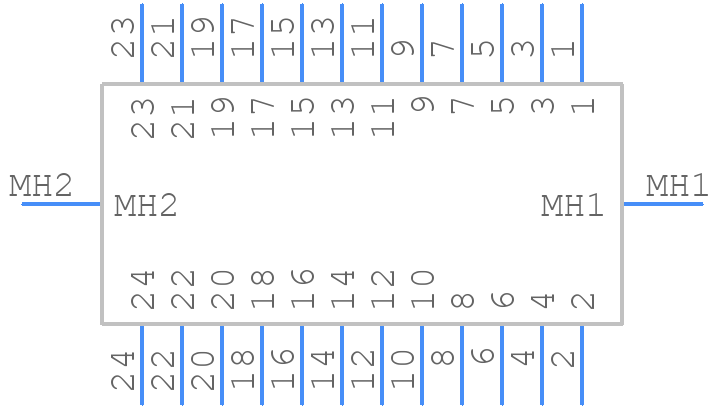

Symbol

click to zoom

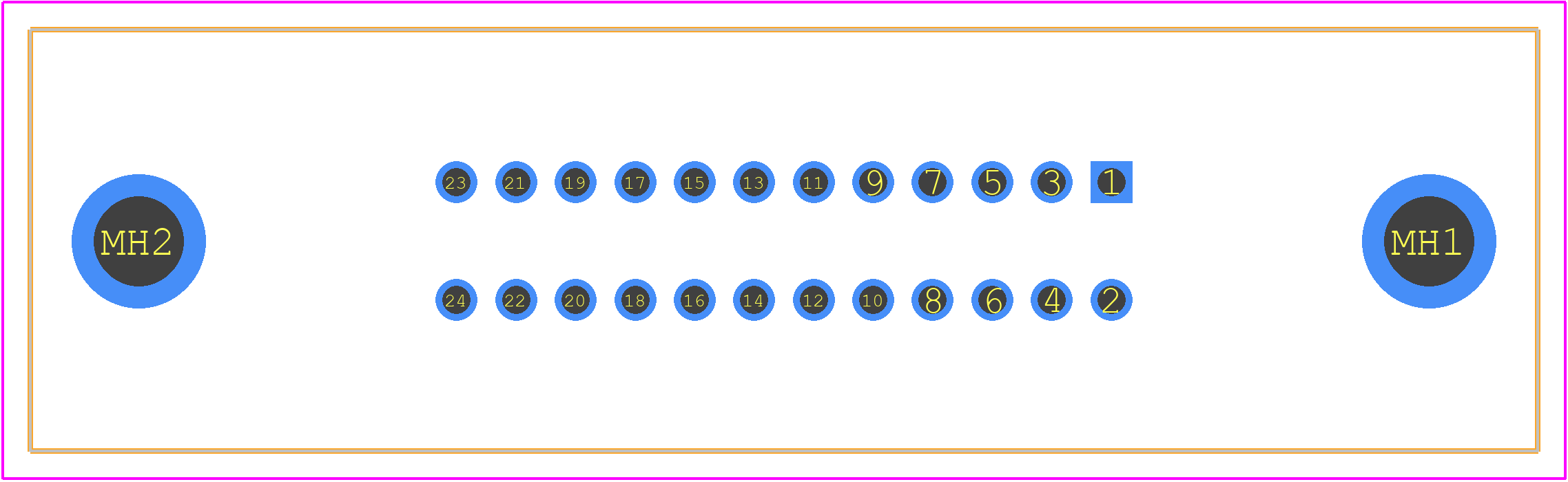

PCB Footprints

111-024-213L001 - NorComp PCB footprint - Other - Other - 111-024-213L001-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 111-024-213L001
Part Number 111-024-213L001
Manufacturer NorComp
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - 111-024-213L001-3
Released Date Apr 15, 2020
Last Modified Date Jul 22, 2026 12:48 PM UTC
Pinout / Pin List Click Here (Member Only)

111-024-213L001 Details

Manufacturer Part Number:
111-024-213L001
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
7
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Bright Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYETHYLENE
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Termination Type:
SOLDER
Total Number of Contacts:
24
UL Flammability Code:
94V-0

111-024-213L001 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
The operating temperature range of the 111-024-213L001 connector is -55°C to 125°C (-65°F to 257°F).
Yes, the connector is designed to be compatible with potting or encapsulation, but it's recommended to consult with NorComp or a qualified engineer to ensure proper sealing and protection.
The mating cycle life of the 111-024-213L001 connector is 500-1000 cycles, depending on the application and environmental conditions.
