111-036-113L001 footprint, schematic symbol and 3D model by NorComp

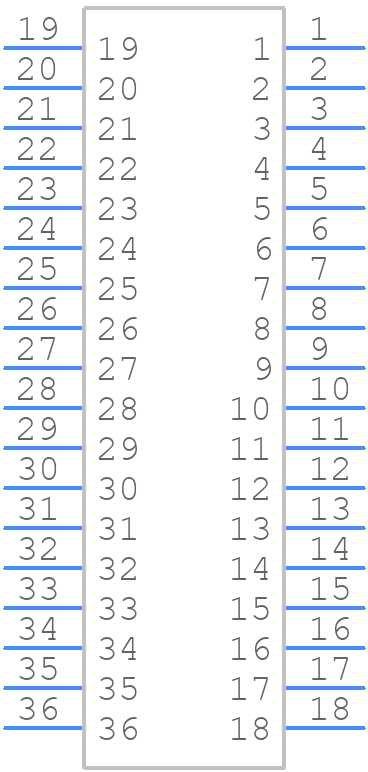

Symbol

click to zoom

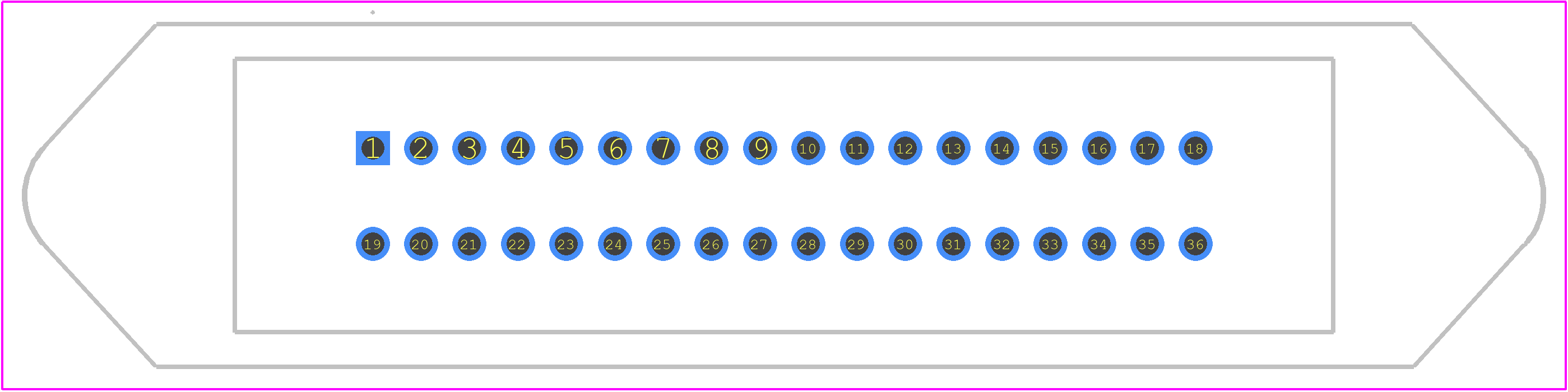

PCB Footprints

111-036-113L001 - NorComp PCB footprint - Other - Other - 111-036-113L001-1

click to zoom

3D Models

111-036-113L001 - NorComp - 3D model - Other - 111-036-113L001-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 111-036-113L001
Part Number 111-036-113L001
Manufacturer NorComp
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - 111-036-113L001-1
Released Date Mar 28, 2023
Last Modified Date Apr 27, 2026 6:34 AM UTC
Pinout / Pin List Click Here (Member Only)

111-036-113L001 Details

Manufacturer Part Number:
111-036-113L001
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
7
Body Breadth:
0.602 inch
Body Depth:
0.167 inch
Body Length:
2.667 inch
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
30 mΩ
Contact Style:
TELCOM, MODULAR
Dielectric Withstanding Voltage:
1400VAC V
Empty Shell:
NO
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mixed Contacts:
NO
Mounting Option 1:
HOLE 0.120
Mounting Option 2:
LOCKING
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Plating Thickness:
FLASH inch
Rated Current (Signal):
1 A
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
STEEL
Termination Type:
SOLDER
Total Number of Contacts:
36
UL Flammability Code:
94V-0

111-036-113L001 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and to prevent damage to the connector.
Yes, the 111-036-113L001 is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
The 111-036-113L001 is designed to operate in temperatures ranging from -40°C to 125°C. While it can withstand some exposure to chemicals, it's recommended to consult the manufacturer's guidelines for specific chemical resistance and to perform testing before using the connector in harsh environments.
The maximum current rating for the 111-036-113L001 is 5A per contact. However, it's recommended to derate the current based on the specific application and environmental conditions to ensure reliable performance.
The 111-036-113L001 is designed for signal transmission and can support high-speed data transmission up to 3.0 Gbps. However, the actual data transmission speed may vary depending on the specific application, cable quality, and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

111-036-113L001 Overview

Use the download button to access the 111-036-113L001 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 111-0, or try a keyword search, such as Telecom and Datacom Connectors
