111-050-113L001 footprint, schematic symbol and 3D model by NorComp

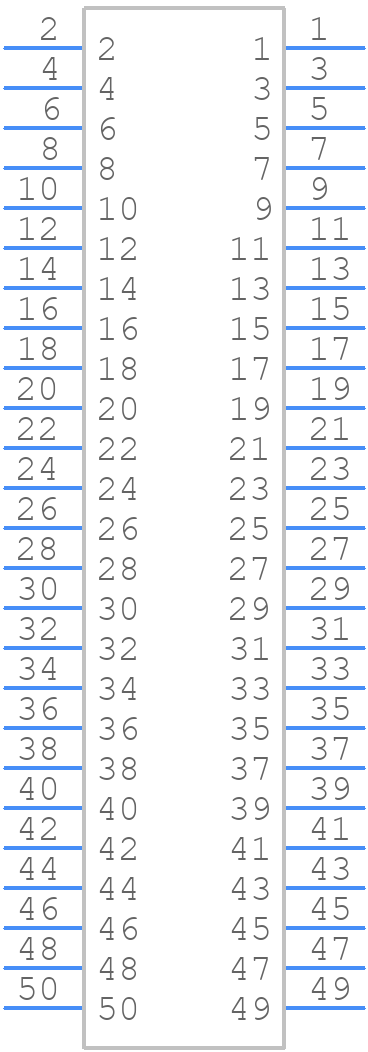

Symbol

click to zoom

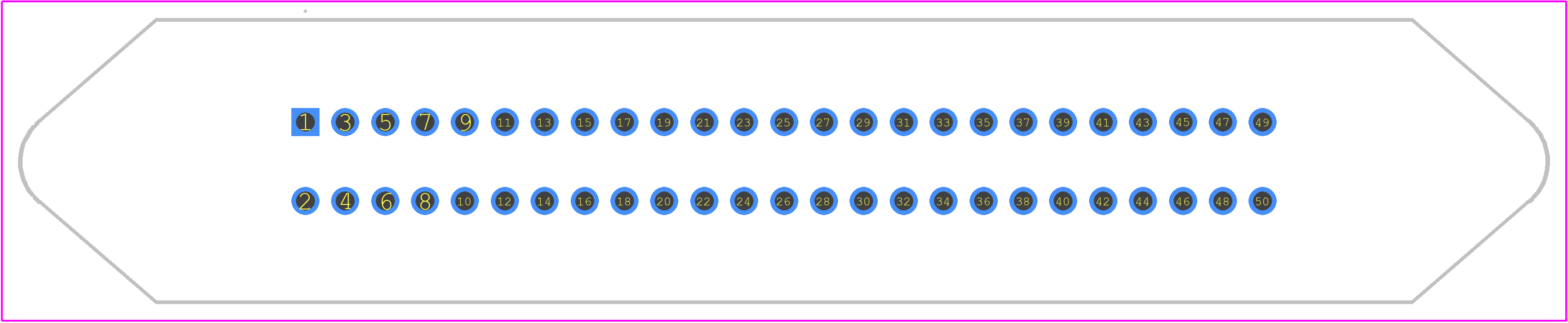

PCB Footprints

111-050-113L001 - NorComp PCB footprint - Other - Other - 111-050-113L001-4

click to zoom

3D Models

111-050-113L001 - NorComp - 3D model - Other - 111-050-113L001-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 111-050-113L001
Part Number 111-050-113L001
Manufacturer NorComp
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - 111-050-113L001-4
Released Date Nov 19, 2018
Last Modified Date Jan 16, 2026 5:30 PM UTC
Pinout / Pin List Click Here (Member Only)

111-050-113L001 Details

Manufacturer Part Number:
111-050-113L001
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
7.5
Body Breadth:
0.602 inch
Body Depth:
0.167 inch
Body Length:
3.264 inch
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
30 mΩ
Contact Style:
TELCOM, MODULAR
Dielectric Withstanding Voltage:
1400VAC V
Empty Shell:
NO
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mixed Contacts:
NO
Mounting Option 1:
HOLE 0.120
Mounting Option 2:
LOCKING
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Plating Thickness:
FLASH inch
Rated Current (Signal):
1 A
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
STEEL
Termination Type:
SOLDER
Total Number of Contacts:
50
UL Flammability Code:
94V-0

111-050-113L001 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 111-050-113L001 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 111-050-113L001 connector has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection, such as a conformal coating or potting, for extended outdoor use.
The 111-050-113L001 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
While the datasheet specifies 24 AWG wire, the 111-050-113L001 connector can accommodate wire sizes ranging from 20 AWG to 28 AWG. However, it's crucial to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

Community Provided

System Verified

Community Approved

111-050-113L001 Overview

Use the download button to access the 111-050-113L001 schematic symbol, PCB footprint, and 3D model.
