1116202-1 - TE Connectivity

1116202-1 Details

• Manufacturer Part Number:

  1116202-1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Board Mounting Option:

  COMPLIANT BOARDLOCK & PEGS

• Body Breadth:

  0.655 inch

• Body Depth:

  0.662 inch

• Body Length:

  0.635 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Resistance:

  30 mΩ

• Contact Style:

  TELCOM, MODULAR

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  750 Cycles

• Insertion Force-Max:

  35.584 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number of Ports:

  1

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

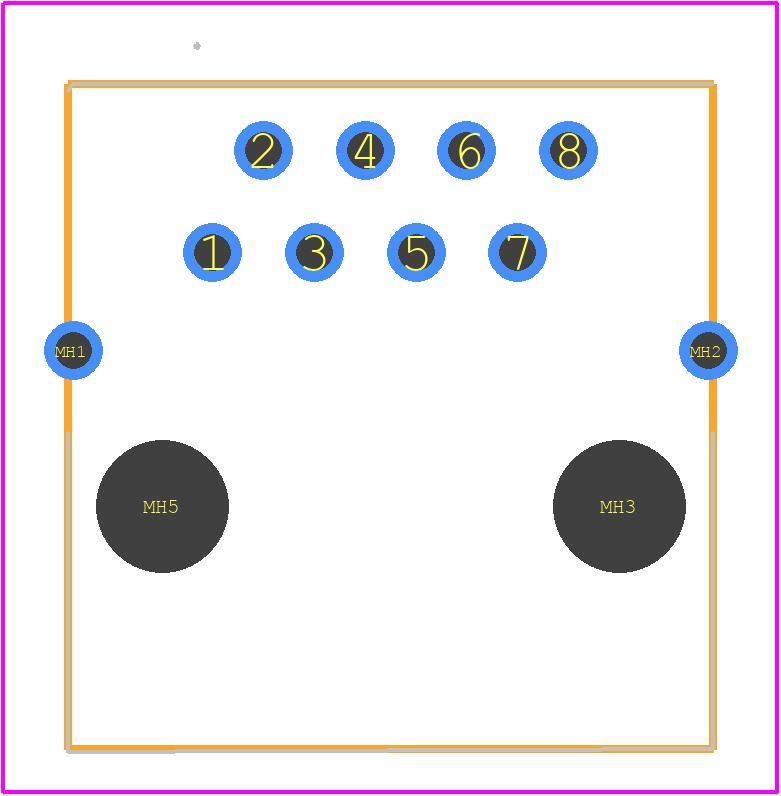

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  CSA, UL

• Shell Finish:

  TIN LEAD

• Shell Material:

  COPPER ALLOY

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  8

• Withdrawl Force-Min:

  35.584 N
