1119809 - Phoenix Contact

Description: LPT 16/ 1-10,0 - Printed circuit board terminal, nominal current: 76 A, nominal cross section: 16 mm<sup>2</sup>, number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: LPT 16/, pitch: 10 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, type of packaging: packed in cardboard

Download 1119809 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1119809 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

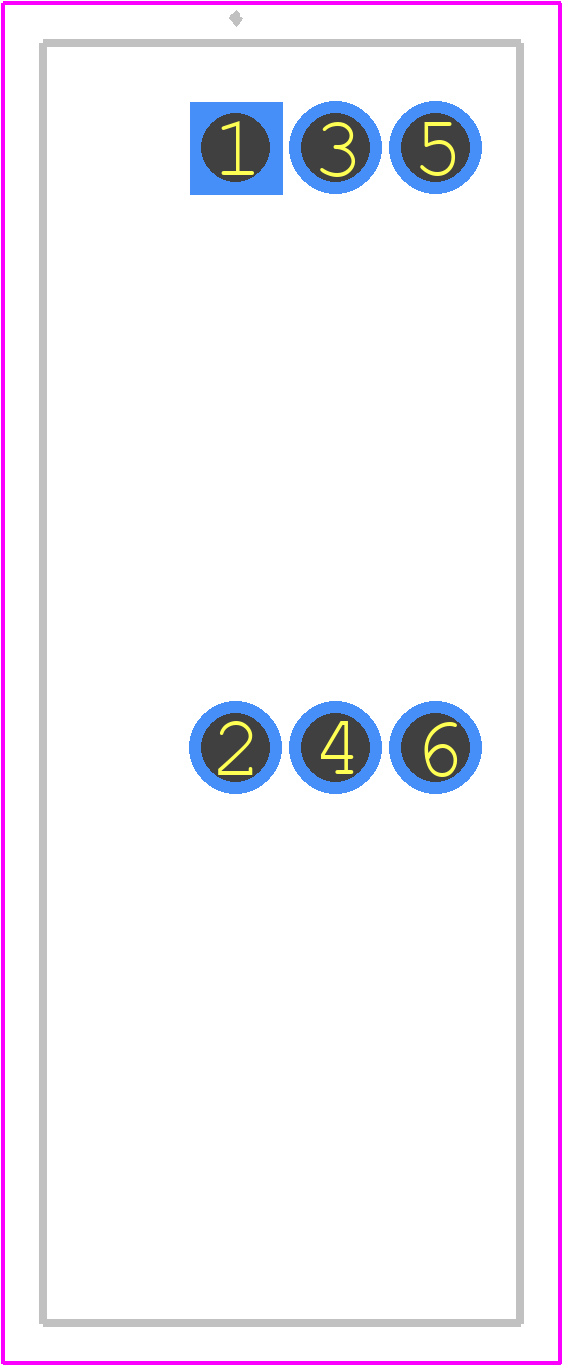

1119809 - Phoenix Contact PCB footprint - Other - Other - 1119809-3
click to zoom
3D Models
1119809 - Phoenix Contact - 3D model - Other - 1119809-3
click to zoom

1119809 Details

  • Manufacturer Part Number:

    1119809

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1119809 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1119809 is -40°C to 125°C.
  • Yes, the 1119809 is suitable for outdoor use, but it must be installed in a weatherproof enclosure to protect it from environmental factors.
  • Yes, the 1119809 is designed to withstand high vibrations and can be used in applications with vibration levels up to 10 g.
  • The maximum wire size that can be connected to the 1119809 is 2.5 mm² (AWG 14).
  • Yes, the 1119809 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1119809 Overview

Use the download button to access the 1119809 schematic symbol, PCB footprint, and 3D model.
