1119818 - Phoenix Contact

Description: LPT 16/ 2-15,0-ZB - Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm<sup>2</sup>, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: LPT 16/, pitch: 15 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 3.6 mm, type of packaging: packed in cardboard

Download 1119818 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1119818 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

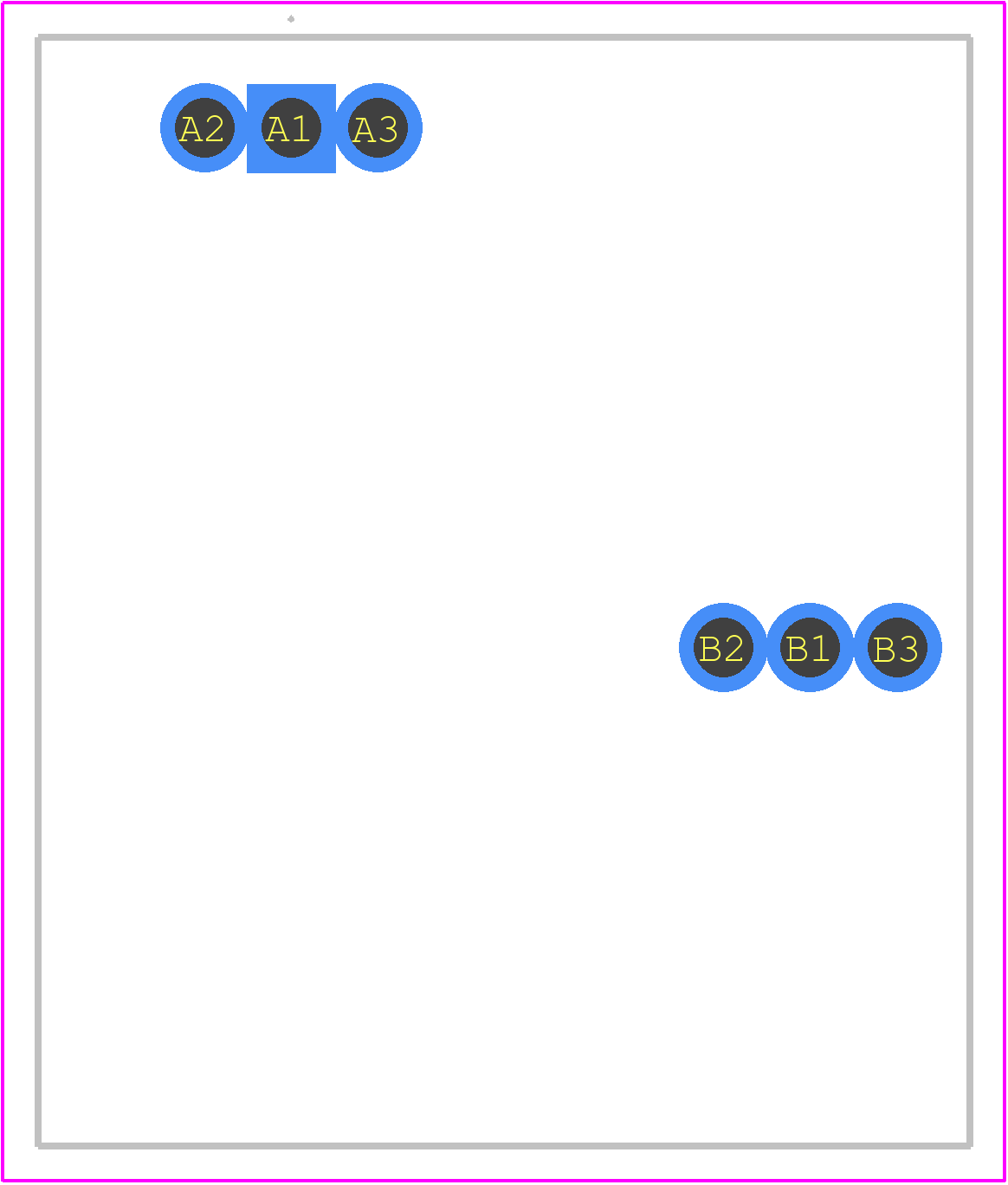

1119818 - Phoenix Contact PCB footprint - Other - Other - 1119818-1
click to zoom
3D Models
1119818 - Phoenix Contact - 3D model - Other - 1119818-1
click to zoom

1119818 Details

  • Manufacturer Part Number:

    1119818

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1119818 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact technical documentation.
  • The 1119818 product is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX or IECEx certified products.
  • The operating temperature range for the 1119818 product is -40°C to +125°C, as specified in the datasheet.
  • Yes, the 1119818 product is RoHS and REACH compliant, meeting the European Union's directives for environmental protection.
  • The 1119818 product is not designed for outdoor use. If you need a product for outdoor applications, consider Phoenix Contact's products with IP67 or higher ingress protection ratings.
