111PCX - Switchcraft

Description: Phone Connectors 2C ENCLOSED 1/4"

Download 111PCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
111PCX - Switchcraft - PCB symbol
click to zoom
PCB Footprints

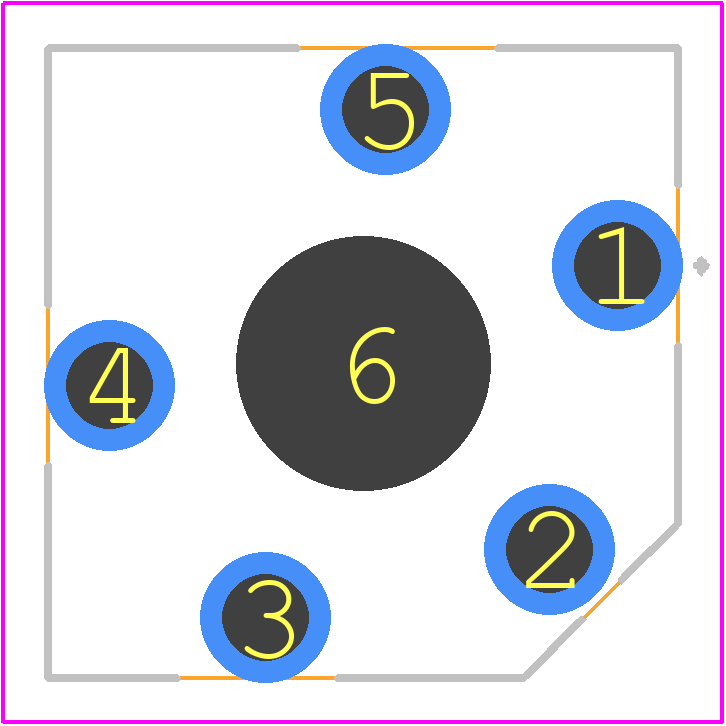

111PCX - Switchcraft PCB footprint - Other - Other - 111PCX
click to zoom
3D Models
111PCX - Switchcraft - 3D model - Other - 111PCX
click to zoom

111PCX Details

  • Manufacturer Part Number:

    111PCX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Switchcraft Conxall

  • Body Breadth:

    0.62 inch

  • Body Depth:

    0.831 inch

  • Body Length:

    0.62 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    GENERAL PURPOSE AUDIO

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Resistance:

    50 mΩ

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    707VAC V

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    5

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Termination Type:

    SOLDER
