112-036-213R001 footprint, schematic symbol and 3D model by NorComp

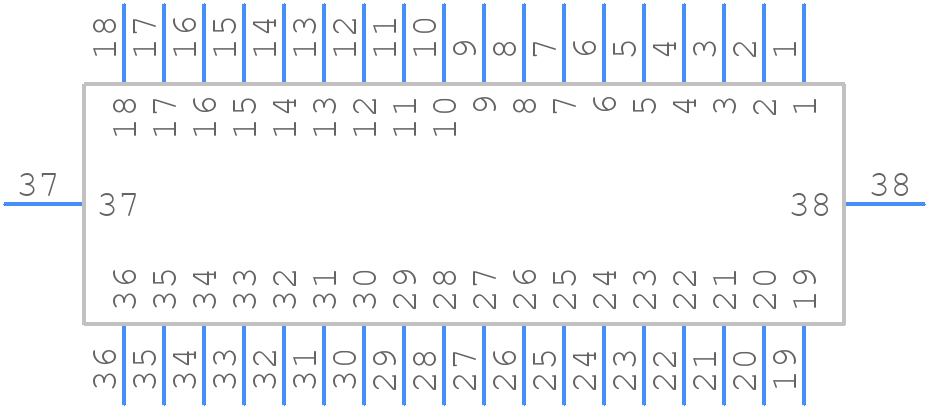

Symbol

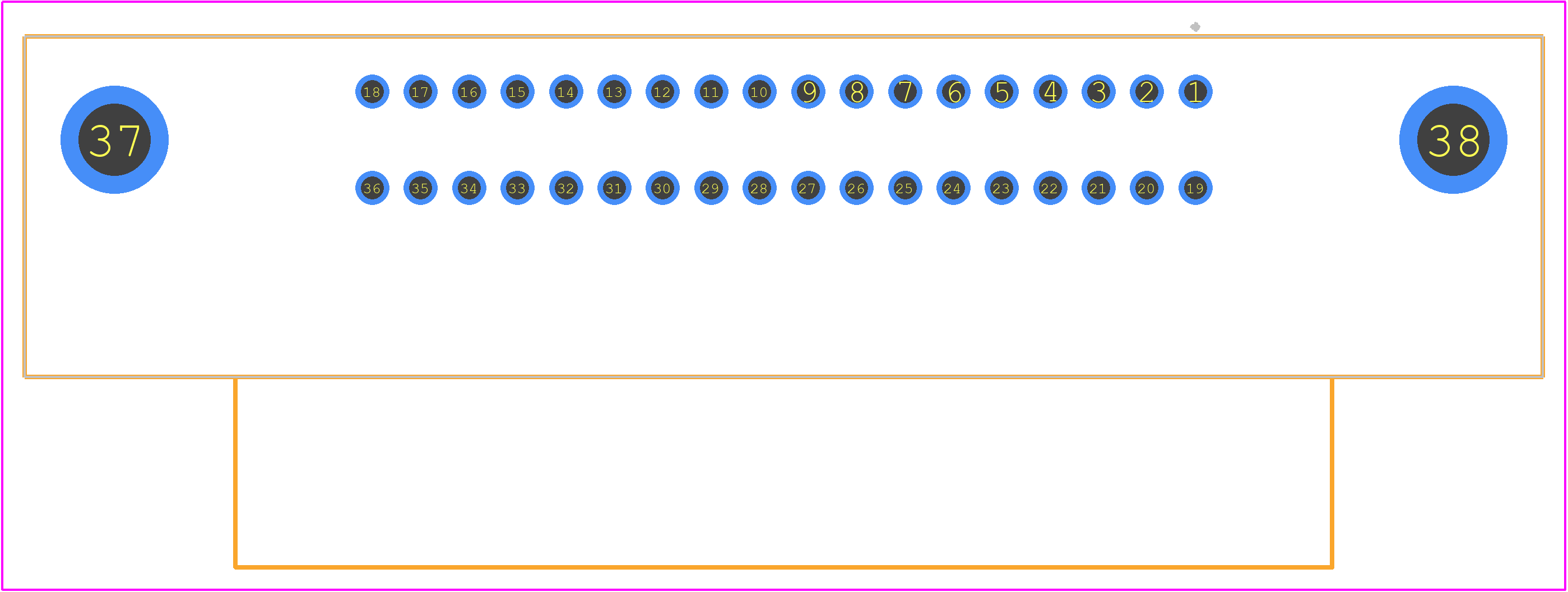

PCB Footprints

112-036-213R001 Details

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and prevent damage.
Yes, the 112-036-213R001 is designed to withstand vibrations up to 10G (ISO 1671) and is suitable for use in high-vibration environments.
The operating temperature range for the 112-036-213R001 is -55°C to 125°C (-67°F to 257°F), making it suitable for use in a wide range of environments.
The 112-036-213R001 is designed to be compatible with other manufacturers' mating connectors that meet the same industry standards (e.g., MIL-DTL-38999). However, it's recommended to verify compatibility before use.
The 112-036-213R001 has an IP67 rating, providing protection against dust and water ingress up to 1 meter for 30 minutes.
