1122590000 - Weidmüller

Description: PCB connector (board connection), 500 V, 29 A, Pitch in mm: 7.62, Number of poles: 7, THT solder connection, Box

Download 1122590000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1122590000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

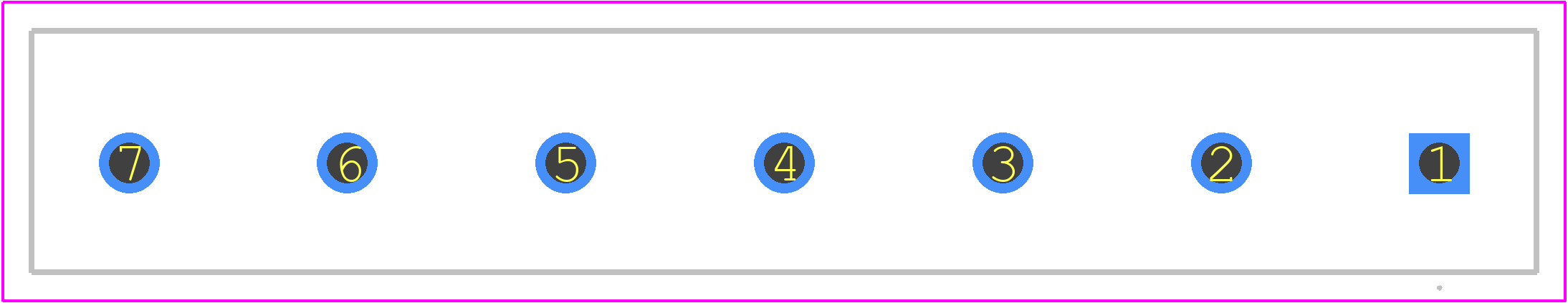

1122590000 - Weidmüller PCB footprint - Other - Other - 1122590000-1
click to zoom
3D Models
1122590000 - Weidmüller - 3D model - Other - 1122590000-1
click to zoom

1122590000 Details

  • Manufacturer Part Number:

    1122590000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1122590000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1122590000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1122590000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The maximum current rating of the 1122590000 is 16 A, according to the manufacturer's specifications.
  • The 1122590000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • Yes, the 1122590000 is UL certified, meeting the safety standards for industrial control equipment in the United States and Canada.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1122590000 Overview

Use the download button to access the 1122590000 schematic symbol, PCB footprint, and 3D model.
