1123794-4 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

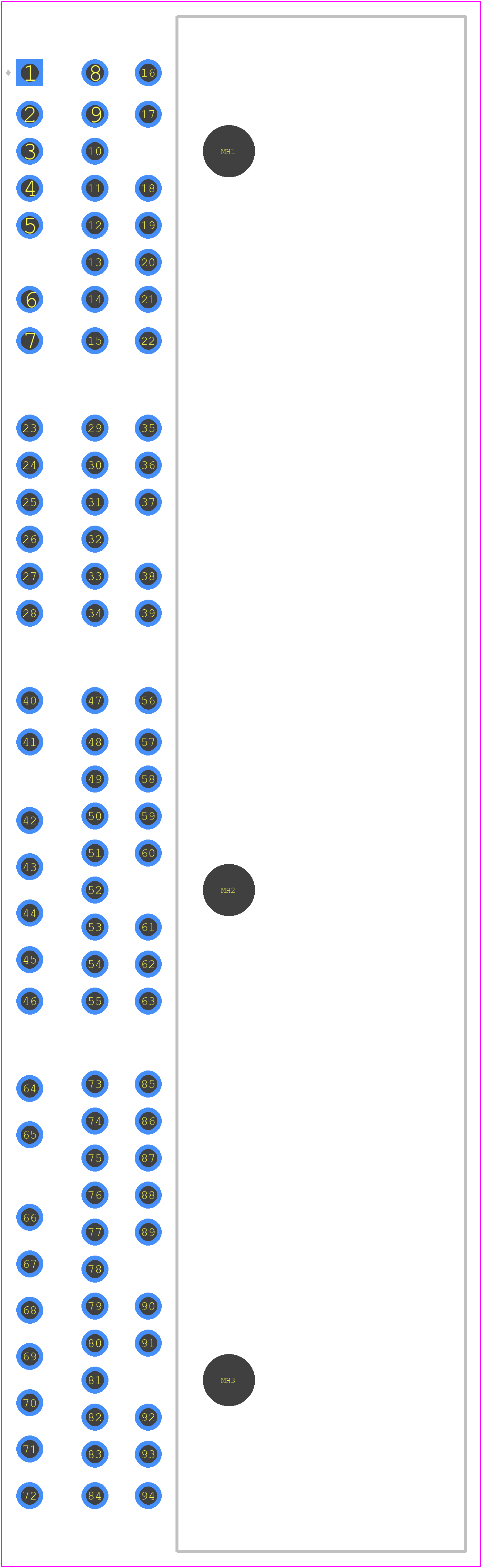

1123794-4 - TE Connectivity PCB footprint - Other - Other - 1123794-4-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1123794-4
Part Number 1123794-4
Manufacturer TE Connectivity
Pin Count 94
Part Category Connector
Package Category Other
Footprint Name Other - 1123794-4-2
Released Date Mar 25, 2023
Last Modified Date Apr 18, 2025 2:57 PM UTC
Pinout / Pin List Click Here (Member Only)

1123794-4 Details

Manufacturer Part Number:
1123794-4
Brand Name:
TE Connectivity
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
8
Body Breadth:
4.083 inch
Body Length:
1.333 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
3
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
12 V
Terminal Pitch:
2.5 mm
Termination Type:
SOLDER
Total Number of Contacts:
94

1123794-4 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 1123794-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
The operating temperature range for the 1123794-4 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
The 1123794-4 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for use in applications where it will be exposed to harsh chemicals or prolonged immersion in water.
The 1123794-4 connector has a mating cycle life of 500 cycles. This means it can be mated and unmated up to 500 times without compromising its performance or reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1123794-4 Overview

Use the download button to access the 1123794-4 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 11237, or try a keyword search, such as Headers and Edge Type Connectors
