112502 - Amphenol

Description: BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder

Download 112502 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
112502 - Amphenol - PCB symbol
click to zoom
PCB Footprints

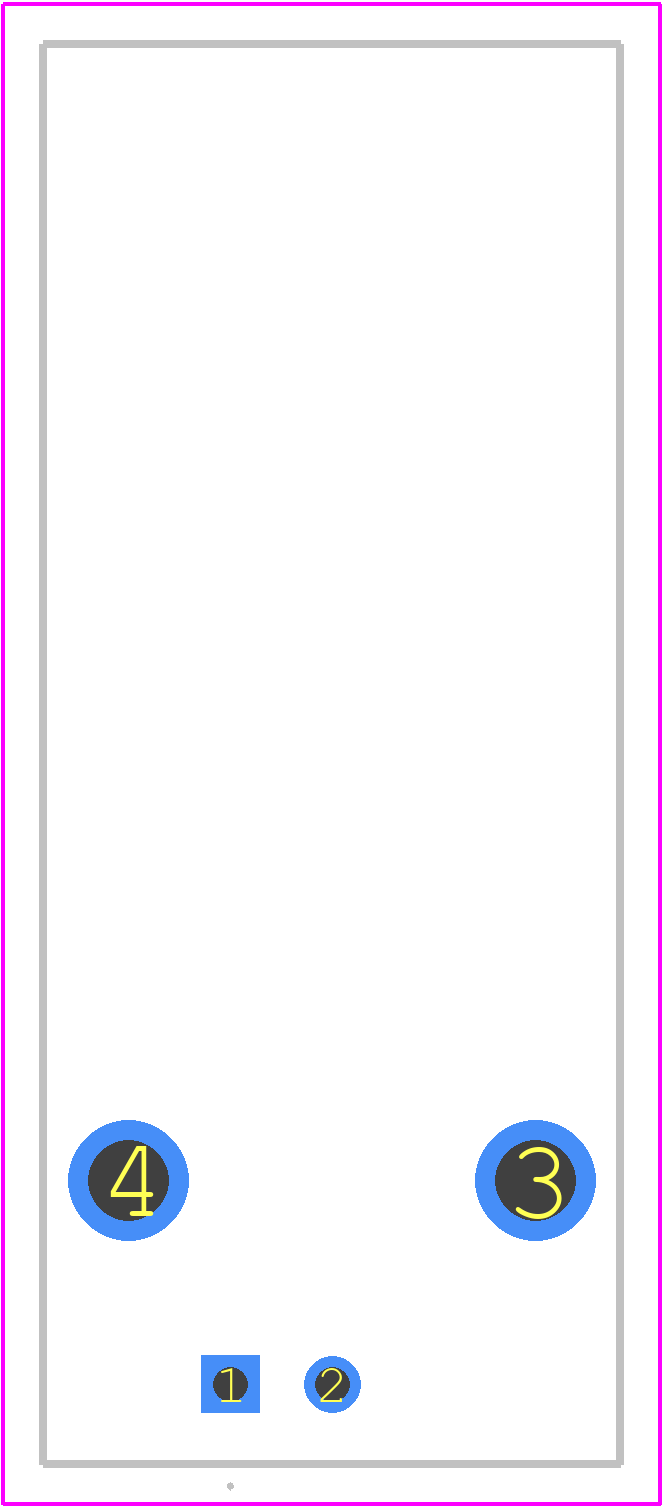

112502 - Amphenol PCB footprint - Other - Other - 112502-1
click to zoom
3D Models
112502 - Amphenol - 3D model - Other - 112502-1
click to zoom

112502 Details

  • Manufacturer Part Number:

    112502

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • Body/Shell Style:

    JACK

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPROPYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Termination Type:

    SOLDER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

112502 Overview

Use the download button to access the 112502 schematic symbol, PCB footprint, and 3D model.
