Part Image

112554 - Amphenol

Description: AMPHENOL RF - 112554 - RF/COAXIAL, BNC JACK, STRAIGHT, 75 OHM, THOUGH HOLE

Download 112554 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
112554 - Amphenol - PCB symbol
click to zoom
PCB Footprints

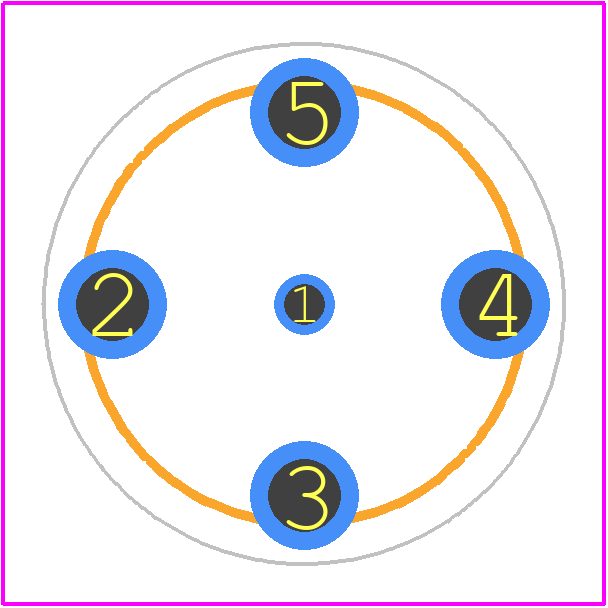

112554 - Amphenol PCB footprint - Other - Other - 112554-2
click to zoom
3D Models
112554 - Amphenol - 3D model - Other - 112554-2
click to zoom

112554 Details

  • Manufacturer Part Number:

    112554

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Body/Shell Style:

    JACK

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

112554 Frequently Asked Questions (FAQs)

  • The recommended torque value for mating the 112554 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks, and 5-7 in-lbs (0.6-0.8 Nm) for the jack screws.
  • Yes, the 112554 connector is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-38999, which includes sinusoidal vibration testing at 20 Gs peak acceleration.
  • Yes, the 112554 connector is designed to operate in harsh environments. It has a temperature range of -65°C to 200°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
  • The typical lead time for delivery of the 112554 connector varies depending on the quantity and availability. However, Amphenol Corporation typically quotes a lead time of 8-12 weeks for standard orders. Expedited delivery options may be available for an additional fee.
  • Yes, Amphenol Corporation offers customization options for the 112554 connector, including special plating, cable assemblies, and modified shell configurations. However, custom orders may require a minimum order quantity and longer lead times.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

112554 Overview

Use the download button to access the 112554 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11255, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
