- Part Number 112APCSX
- Manufacturer Switchcraft
- Pin Count 5
- Part Category Connector
- Package Category Other

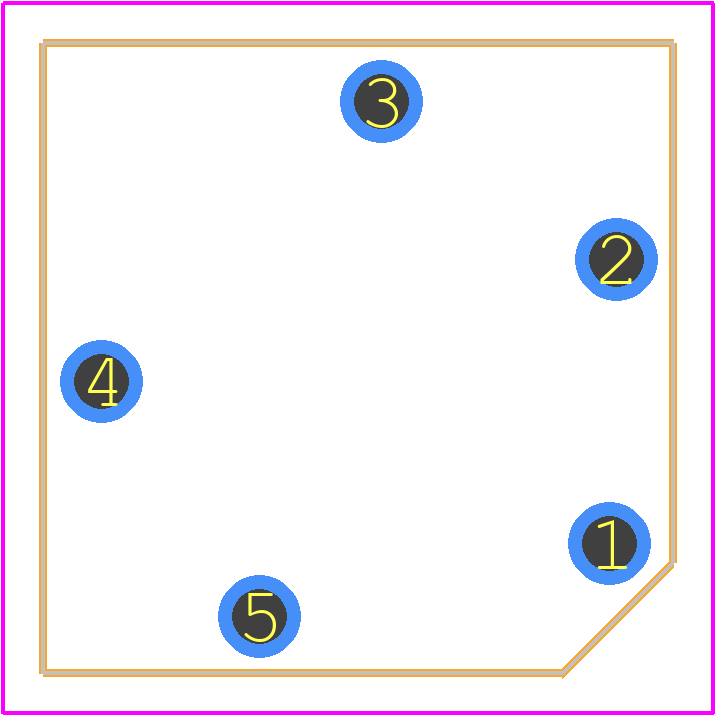

- Footprint Name Other - 112APCSX-2
- Released Date Feb 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
112APCSX Details
-
Manufacturer Part Number:
112APCSX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Switchcraft Conxall
-
Body Breadth:
0.62 inch
-
Body Depth:
0.831 inch
-
Body Length:
0.62 inch
-
Body/Shell Style:
JACK
112APCSX Frequently Asked Questions (FAQs)
-
The operating temperature range of the 112APCSX connector is -55°C to 125°C.
-
Yes, the 112APCSX connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
-
The 112APCSX connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
-
Yes, the 112APCSX connector is designed for PCB mounting, making it easy to integrate into your printed circuit board design.
-
The insulation resistance of the 112APCSX connector is 10^9 ohms minimum at 500 VDC, ensuring reliable electrical isolation between contacts.
Trust Checks
Expert Contribution
System Verified
Community Approved
112APCSX Overview
Use the download button to access the 112APCSX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 112AP,
or try a keyword search, such as Audio/RCA Connectors
