- Part Number 112BPCX
- Manufacturer Switchcraft
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - 112BPCX-4
- Released Date Aug 13, 2021
- Last Modified Date Oct 28, 2024 1:16 PM UTC
- Pinout / Pin List Click Here (Member Only)
112BPCX Details
-
Manufacturer Part Number:
112BPCX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Switchcraft Conxall
-
Body Breadth:
0.62 inch
-
Body Depth:
0.831 inch
-
Body Length:
0.62 inch
112BPCX Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 6-8 in-lbs (0.7-0.9 Nm).
-
Yes, the 112BPCX is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-C-5015, which includes 10-2000 Hz, 20 G peak acceleration.
-
Yes, the 112BPCX is suitable for outdoor use. It has a rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes and is protected against dust ingress.
-
The maximum operating temperature of the 112BPCX is 150°C (302°F).
-
While the datasheet specifies AWG 20-24 wire sizes, the 112BPCX can accommodate other wire sizes with the use of adapters or specialized contacts. However, it's recommended to consult with Switchcraft Conxall or a qualified engineer to ensure compatibility and proper installation.
Trust Checks
Community Provided
System Verified
Community Approved
112BPCX Overview

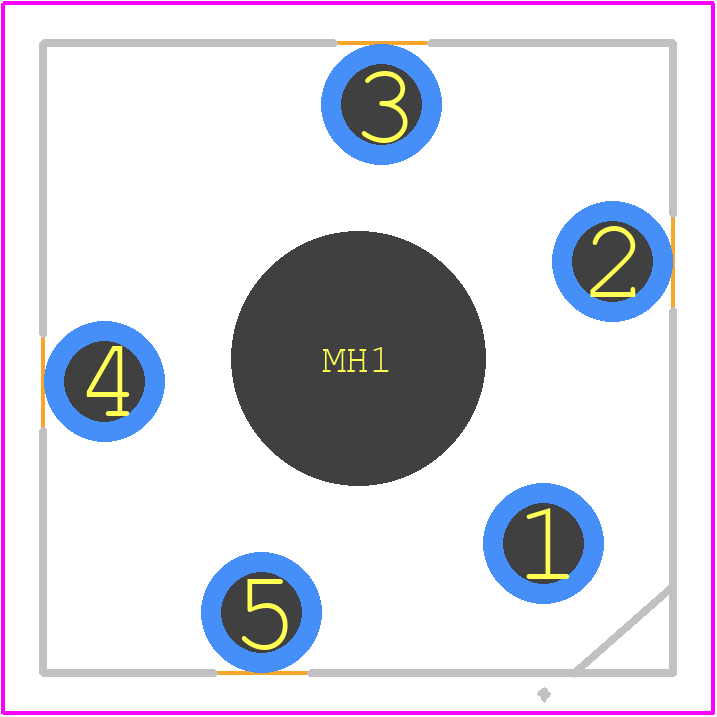

Use the download button to access the 112BPCX schematic symbol, PCB footprint, and 3D model.
