STANDARDS: DIN 41612, IEC 60603-2, STAGGERED CONFIGURATION
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
YES
Filter Feature:
NO
IEC Conformance:
YES
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
10.16 mm
Termination Type:
SOLDER
Total Number of Contacts:
15
113-40060 Frequently Asked Questions (FAQs)
The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application requirements and the ept Connectors' documentation for precise guidance.
Yes, the 113-40060 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection.
Yes, the 113-40060 connector is designed to be compatible with other ept Connectors' products, including their range of connectors, adapters, and cable assemblies. However, it's essential to verify compatibility before integrating the connector into your system.
The operating temperature range for the 113-40060 connector is -40°C to 125°C. However, it's essential to consult the datasheet and ept Connectors' documentation for specific temperature ratings and derating guidelines.
The 113-40060 connector is designed to operate in a variety of environments, including those with high humidity. However, exposure to harsh chemicals or extreme environmental conditions may affect the connector's performance and lifespan. It's essential to consult ept Connectors' documentation and conduct thorough testing before deploying the connector in such environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
113-40060 Overview

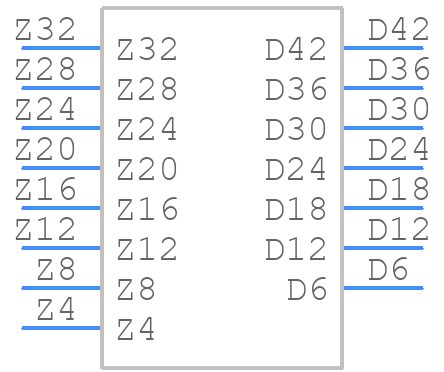

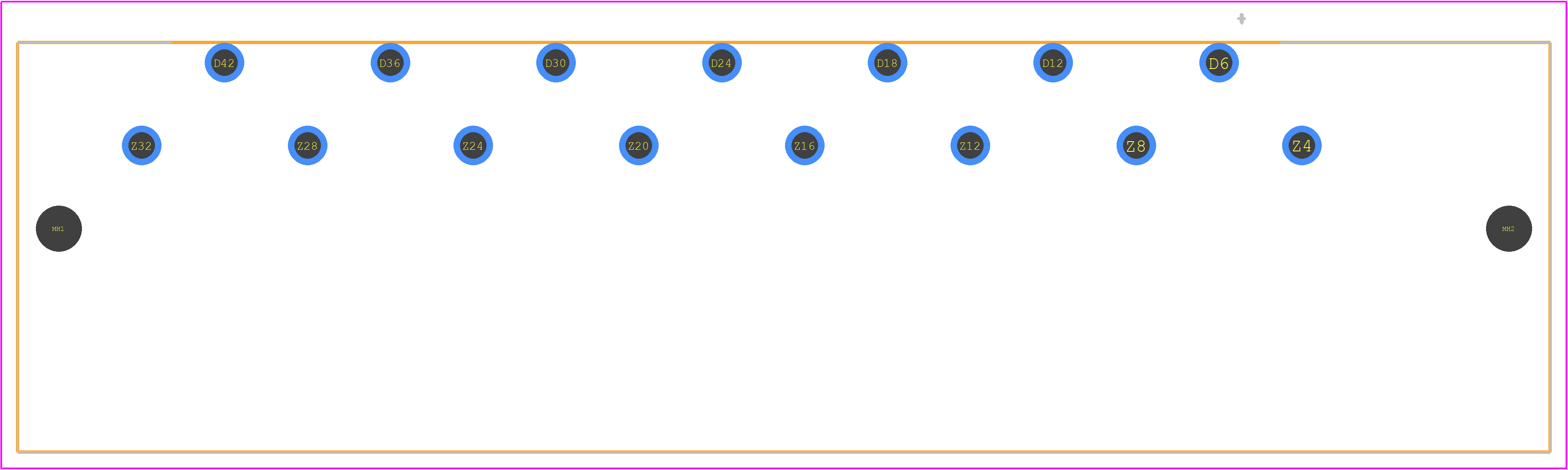

Use the download button to access the 113-40060 schematic symbol, PCB footprint, and 3D model.
