113-40160 - ept

Description: Conn DIN 41612 M 15 POS Solder RA Thru-Hole Box

Download 113-40160 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

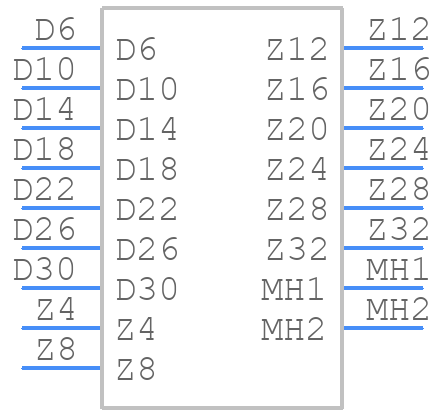

113-40160 - ept - PCB symbol
click to zoom
PCB Footprints

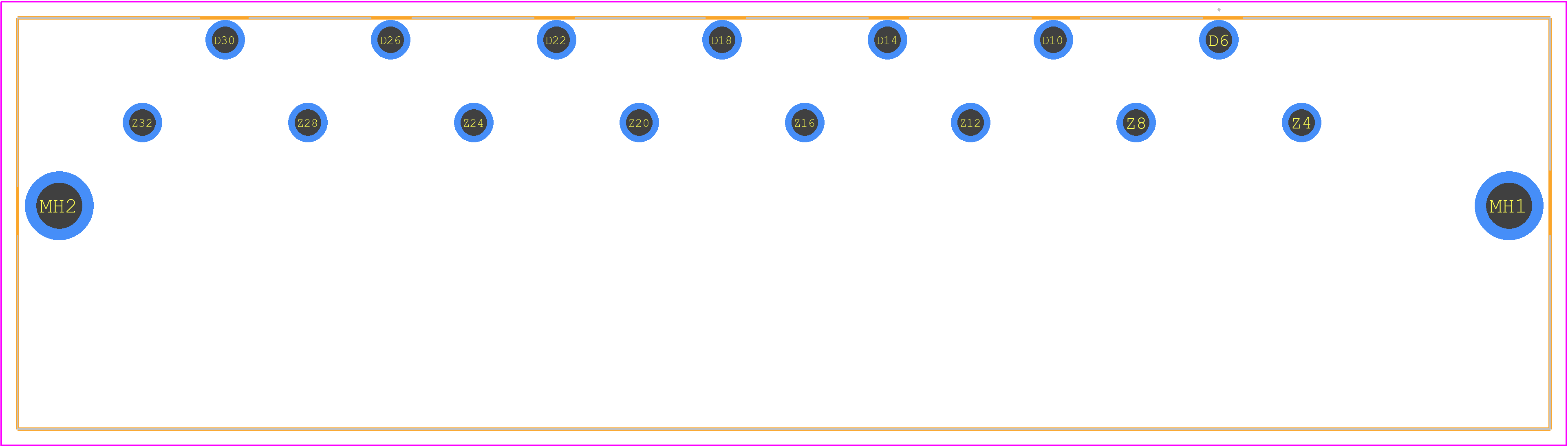

113-40160 - ept PCB footprint - Other - Other - 113-40160-5
click to zoom
3D Models
113-40160 - ept - 3D model - Other - 113-40160-5
click to zoom

113-40160 Details

  • Manufacturer Part Number:

    113-40160

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    7

  • Additional Feature:

    STANDARDS: DIN 41612, IEC 60603-2, STAGGERED CONFIGURATION

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    10.16 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

113-40160 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
  • Yes, the 113-40160 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure the connector to the PCB or panel to prevent damage or disconnection.
  • The 113-40160 connector has a IP67 rating, making it suitable for outdoor and harsh environment applications. However, it's essential to ensure proper sealing and protection of the connector and cables to maintain the IP rating.
  • The 113-40160 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consider the temperature rating of the cables and other components in the system to ensure reliable operation.
  • Yes, the 113-40160 connector is designed to accommodate shielded cables. The connector's shielded design helps to reduce electromagnetic interference (EMI) and ensure reliable signal transmission.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

113-40160 Overview

Use the download button to access the 113-40160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 113-4, or try a keyword search, such as Headers and Edge Type Connectors
