Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
Bourns offers a resistor selection guide that helps engineers choose the right resistor value and tolerance based on their specific application requirements, including power rating, operating temperature, and precision requirements.
Although the datasheet doesn't explicitly state the maximum allowable voltage, Bourns recommends not exceeding 200V for the 1130-122K-RC resistor to ensure reliable operation and prevent damage.
While the 1130-122K-RC is a general-purpose resistor, it's not optimized for high-frequency applications. For high-frequency use, consider Bourns' high-frequency resistor series, such as the 2300 or 2500 series, which are designed to minimize parasitic inductance and capacitance.
Bourns provides thermal management guidelines, including derating curves and thermal resistance data, to help engineers ensure the resistor operates within a safe temperature range. Additionally, consider using thermal pads, heat sinks, or other thermal management solutions as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1130-122K-RC Overview

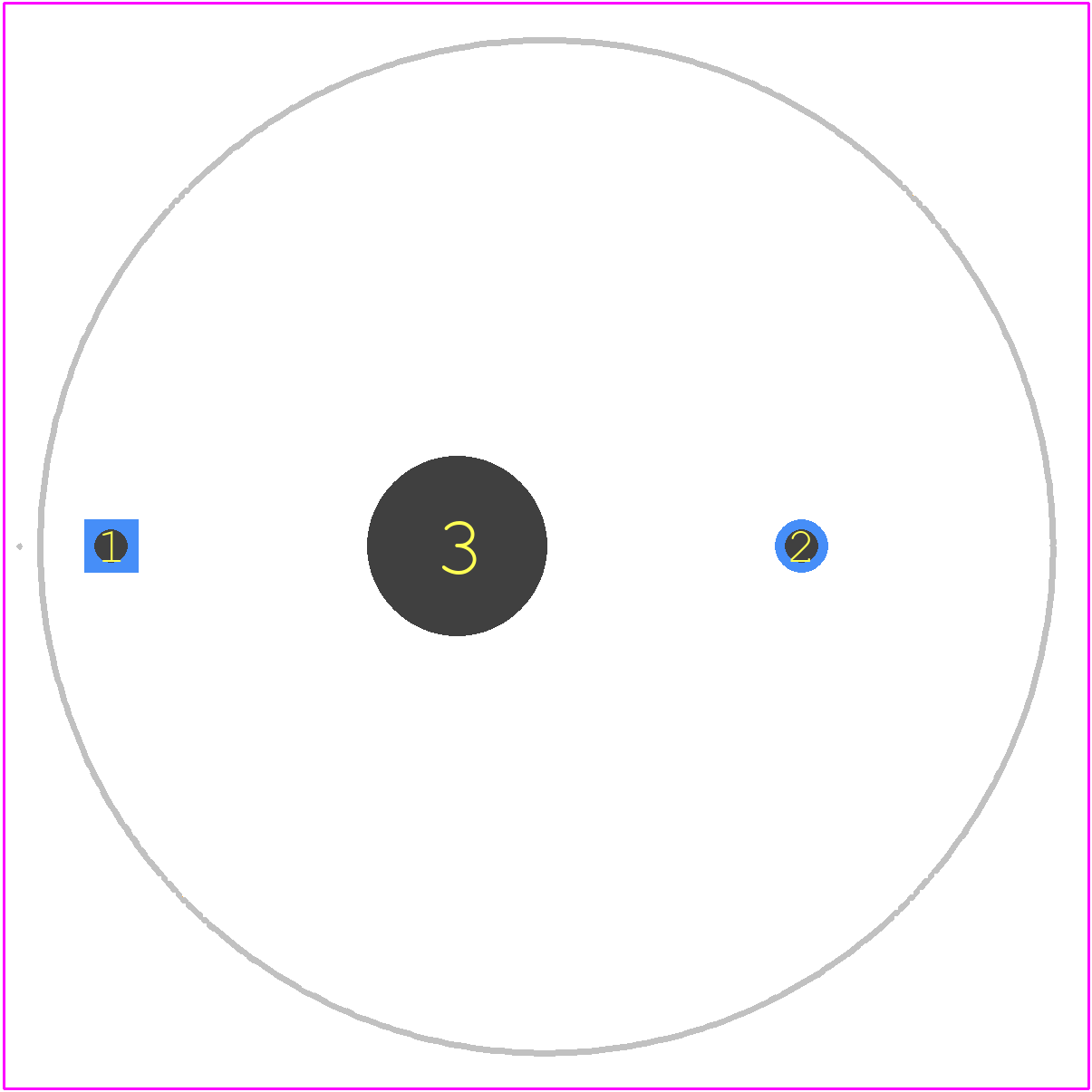

Use the download button to access the 1130-122K-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1130-,
or try a keyword search, such as Fixed Inductors
