1130-471K-RC footprint, schematic symbol and 3D model by Bourns

Symbol

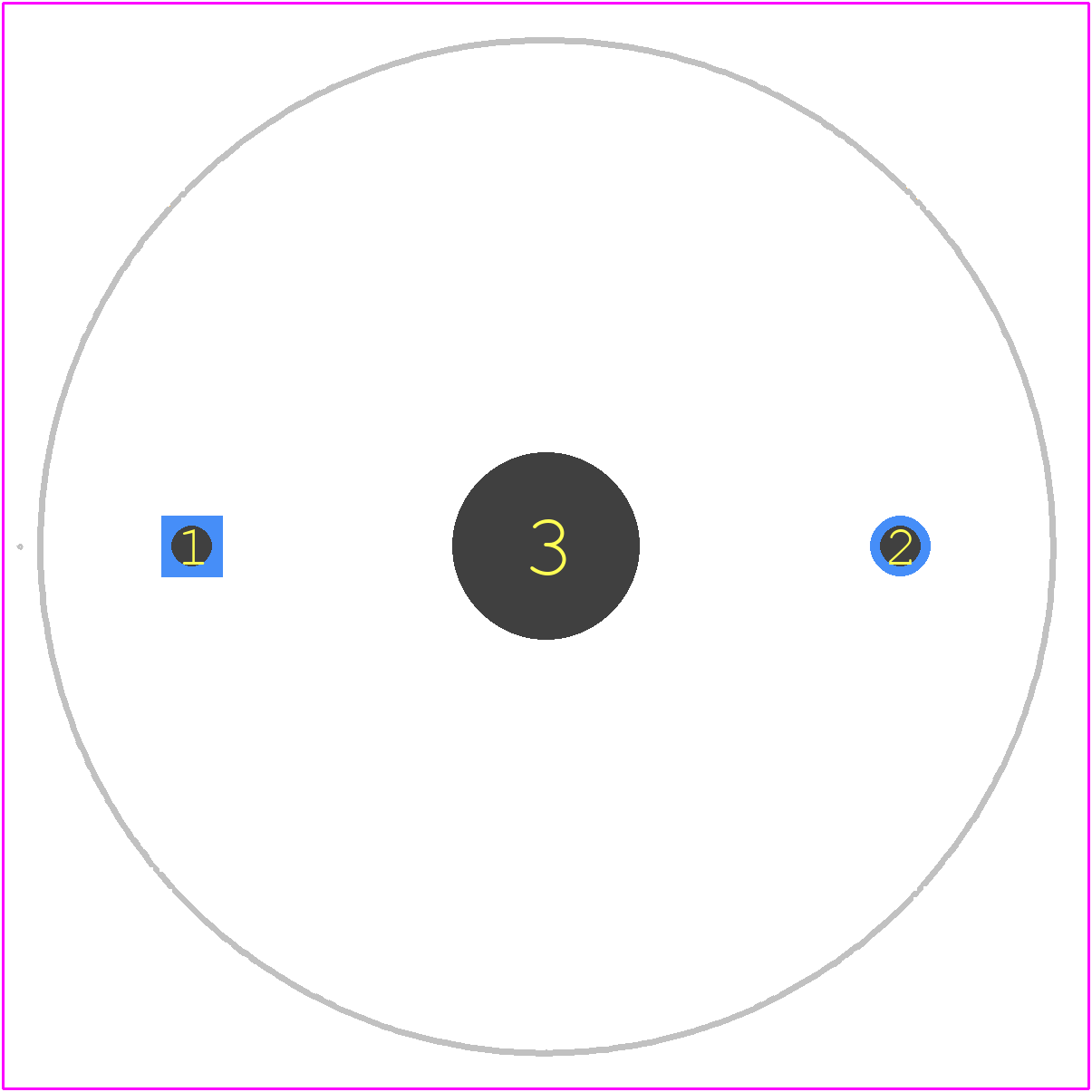

PCB Footprints

3D Models

1130-471K-RC Details

The operating temperature range for the 1130-471K-RC is -40°C to +125°C, with a maximum storage temperature of +150°C.
Yes, the 1130-471K-RC inductor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The recommended land pattern for the 1130-471K-RC inductor can be found in the Bourns application note AN-13, which provides guidelines for PCB layout and land pattern design.
The 1130-471K-RC inductor is designed to withstand moderate vibration levels, but it's recommended to consult with Bourns' application engineers to determine the suitability of this component for high-vibration applications.
The self-resonant frequency (SRF) of the 1130-471K-RC inductor is approximately 25 MHz, but this value can vary depending on the specific application and PCB layout.

Community Provided

System Verified

Community Approved

Use the download button to access the 1130-471K-RC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1130-, or try a keyword search, such as Fixed Inductors
