11328-T060 - Sumida

11328-T060 Frequently Asked Questions (FAQs)

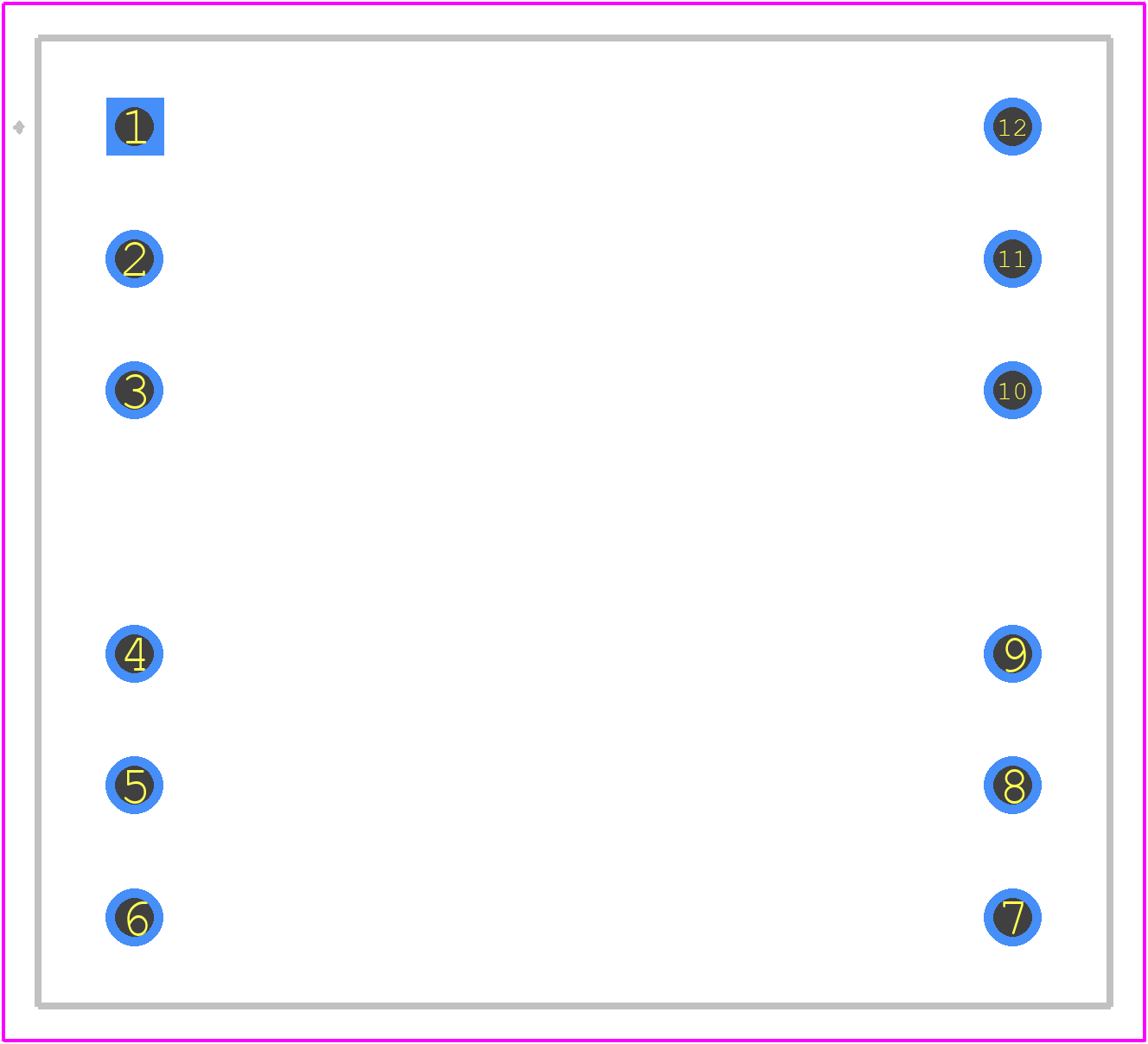

• What is the recommended PCB layout and land pattern for optimal performance?
  The recommended PCB layout and land pattern can be found in the Sumida Corporation's application note AN-11328, which provides guidelines for optimal performance and thermal management.
• How does the inductor perform in high-frequency applications above 1 MHz?
  While the datasheet only provides information up to 1 MHz, the 11328-T060 is capable of operating at higher frequencies. However, it's recommended to consult with Sumida Corporation's application engineers to determine the inductor's performance and potential derating at higher frequencies.
• What is the maximum allowable voltage across the inductor?
  The maximum allowable voltage across the inductor is not explicitly stated in the datasheet. However, as a general rule, it's recommended to derate the voltage by 20-30% to ensure reliable operation. For specific voltage derating, consult with Sumida Corporation's application engineers.
• How does the inductor behave in high-temperature environments?
  While the datasheet provides temperature ratings, the inductor's performance may degrade at high temperatures. It's recommended to consult with Sumida Corporation's application engineers to determine the inductor's performance and potential derating at high temperatures.
• Are there any specific soldering or assembly recommendations for this inductor?
  Yes, Sumida Corporation provides guidelines for soldering and assembly in their application note AN-11328. It's recommended to follow these guidelines to ensure reliable operation and prevent damage to the inductor.
