The recommended PCB layout for the 11328-T074 inductor involves placing the component on a solid ground plane, using a wide copper trace for the current path, and keeping the component away from high-frequency signal lines to minimize electromagnetic interference (EMI).
The 11328-T074 inductor has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat dissipation, such as using a heat sink or thermal pad, and to avoid exceeding the maximum current rating to prevent overheating.
The self-resonant frequency (SRF) of the 11328-T074 inductor is not explicitly stated in the datasheet. However, based on the inductor's construction and materials, the SRF is typically in the range of 100-200 MHz. It's essential to consider the SRF when designing the circuit to avoid unwanted resonances.
The 11328-T074 inductor is designed to withstand moderate vibration levels. However, if the application involves extreme vibration, it's recommended to consult with Sumida Corporation or perform additional testing to ensure the inductor's reliability and performance.
The 11328-T074 inductor has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels without special handling or storage precautions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
11328-T074 Overview

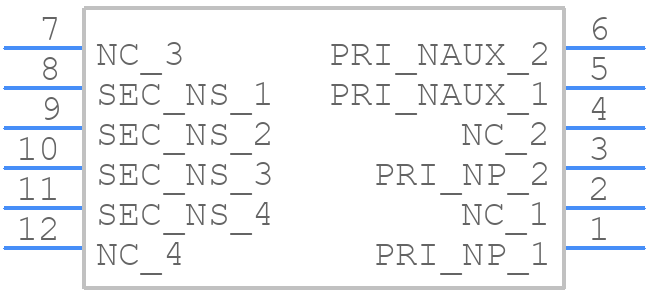

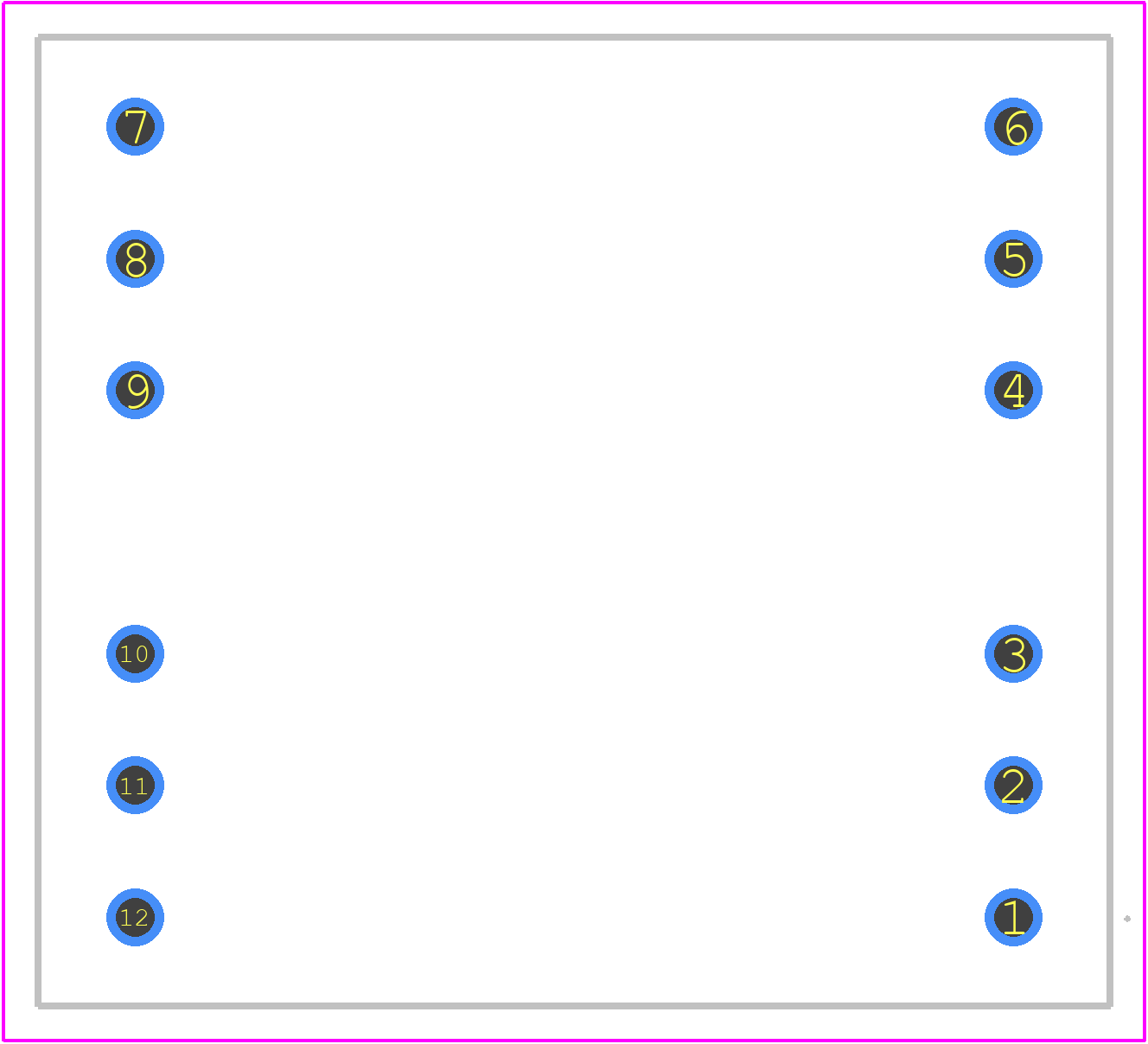

Use the download button to access the 11328-T074 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11328,
or try a keyword search, such as SMPS Transformers
Suggested Parts
If you searched for 11328-T074, you might also be interested in these parts:
