11328-T078 - Sumida

Description: Flyback Converters For For DC/DC Converters SMPS Transformer 3000Vrms Isolation Through Hole

Download 11328-T078 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

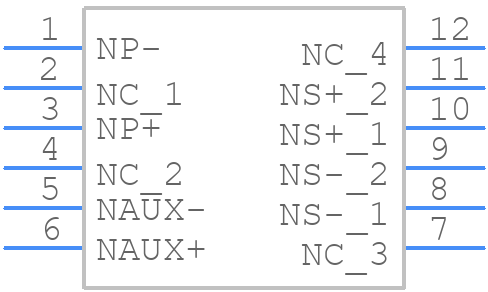

11328-T078 - Sumida - PCB symbol
click to zoom
PCB Footprints

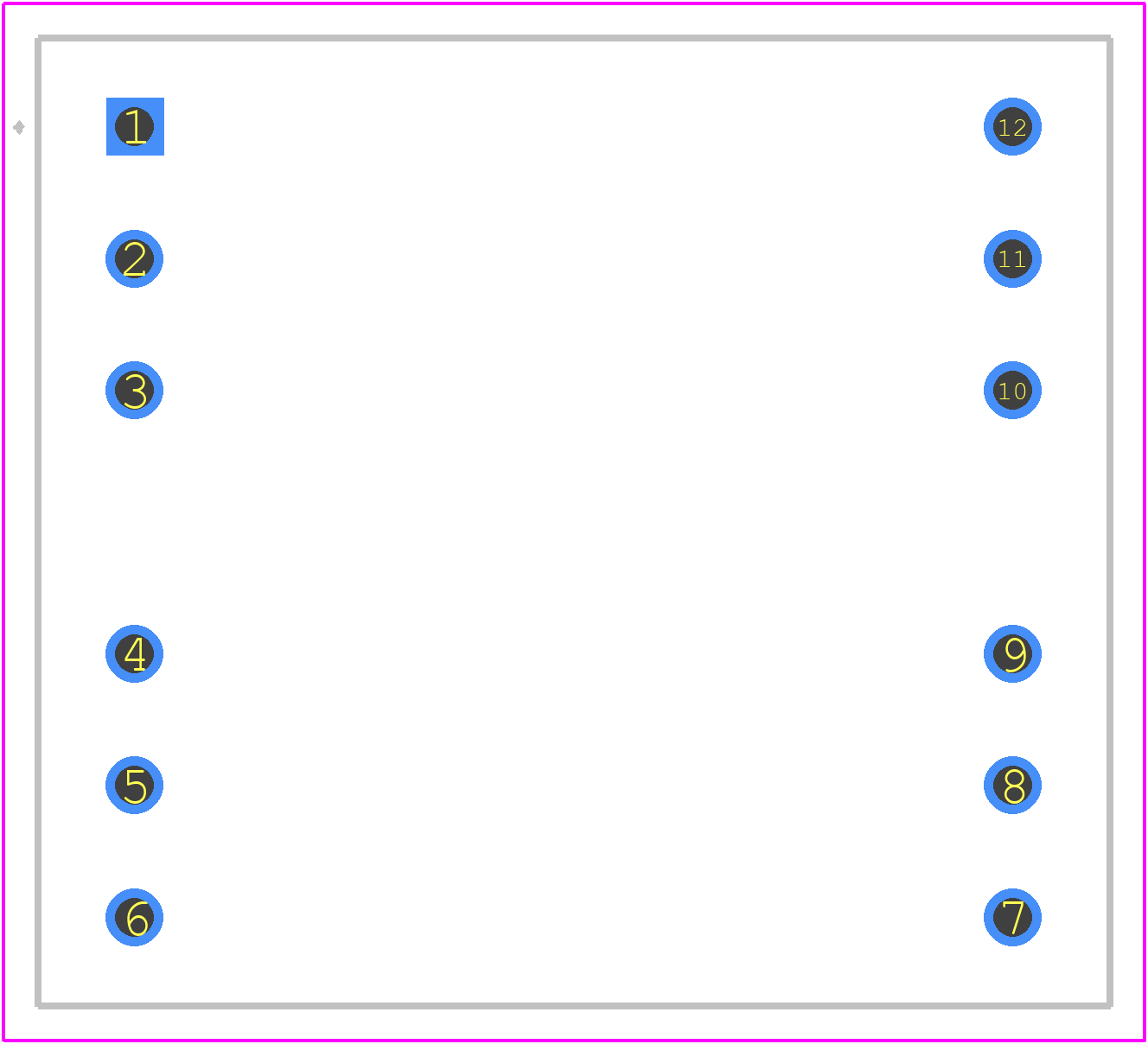

11328-T078 - Sumida PCB footprint - Other - Other - 11328-T078-8
click to zoom
3D Models
11328-T078 - Sumida - 3D model - Other - 11328-T078-8
click to zoom

11328-T078 Details

  • Manufacturer Part Number:

    11328-T078

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    Sumida Corporation

  • Height:

    23.5 mm

  • Input Voltage-Max:

    600 V

  • Input Voltage-Min:

    100 V

  • Length:

    31 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Primary Inductance:

    670 µH

  • Surface Mount:

    NO

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    28 mm

11328-T078 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a ground plane underneath the inductor is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • The 11328-T078 is rated for operation up to 125°C, but derating may be necessary for temperatures above 100°C. Consult the manufacturer's application notes for specific guidance.
  • The maximum allowable voltage is not explicitly stated in the datasheet, but it's generally recommended to keep the voltage across the inductor below 1.5 times the rated voltage to ensure reliability.
  • Yes, the 11328-T078 is suitable for high-frequency switching applications up to several hundred kHz. However, core losses and skin effect should be considered when designing the circuit.
  • Follow the manufacturer's recommended soldering profile and ensure the inductor is properly aligned with the PCB pads. Avoid applying excessive force or heat, which can damage the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

11328-T078 Overview

Use the download button to access the 11328-T078 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11328, or try a keyword search, such as SMPS Transformers
