114021 - TE Connectivity

Description: Hard Metric Connectors 125P 2MM VERT FML TYPE B SHLD PRESSFIT

Download 114021 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
114021 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

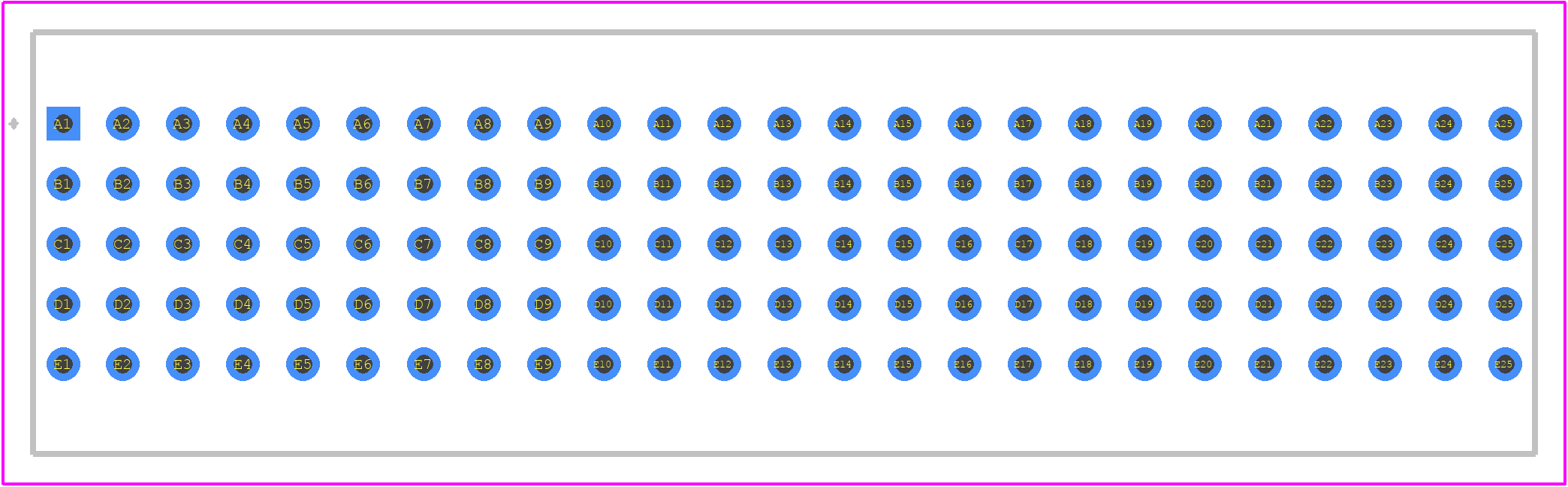

114021 - TE Connectivity PCB footprint - Other - Other - 114021
click to zoom
3D Models
114021 - TE Connectivity - 3D model - Other - 114021
click to zoom

114021 Details

  • Manufacturer Part Number:

    114021

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TE Connectivity

  • Assembly Item Name:

    WASHER

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    STAINLESS STEEL

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Used With:

    HD SERIES

  • Wire Gauge:

    0 AWG

114021 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 114021 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • Yes, the 114021 connector has a sealed design that provides protection against moisture and humidity, with an IP67 rating.
  • The operating temperature range for the 114021 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 114021 connector can accommodate wire sizes ranging from 18 AWG to 24 AWG, but the recommended wire size is 20 AWG.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

114021 Overview

Use the download button to access the 114021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11402, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
