1147540000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 9, THT solder connection, Box

Download 1147540000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1147540000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

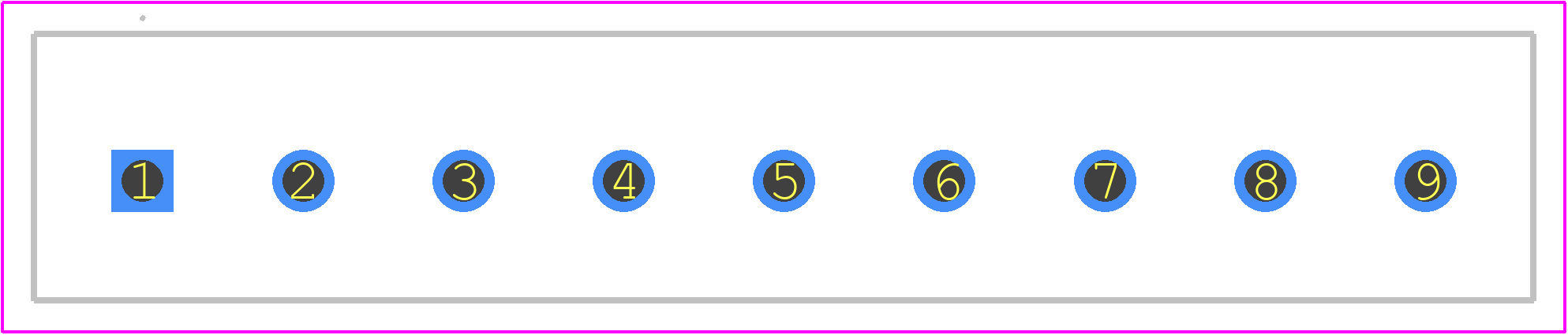

1147540000 - Weidmüller PCB footprint - Other - Other - 1147540000-1
click to zoom
3D Models
1147540000 - Weidmüller - 3D model - Other - 1147540000-1
click to zoom

1147540000 Details

  • Manufacturer Part Number:

    1147540000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    18.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; EAC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1147540000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1147540000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1147540000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1147540000 is 10A per contact, ensuring reliable and safe operation in high-current applications.
  • The 1147540000 is designed to meet the requirements of IEC 60079-0 and IEC 60079-7, making it suitable for use in hazardous locations, such as explosive atmospheres.
  • The 1147540000 has an IP20 rating, providing protection against solid objects and fingers, but not against water or moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1147540000 Overview

Use the download button to access the 1147540000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11475, or try a keyword search, such as Terminals and Terminal Blocks
