Part Image

1149868 - Phoenix Contact

Description: CUC-SP-J1ST-A/R4LB - Modular RJ45 PCB connectors, 1x1 single-port, connection direction of the connector to the PCB: 90 °, Tab down, Shielded, number of positions: 8, 10 Gbps, PoE++, THT, THD, Wave, IP20, type of packaging: Tray

Download 1149868 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1149868 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

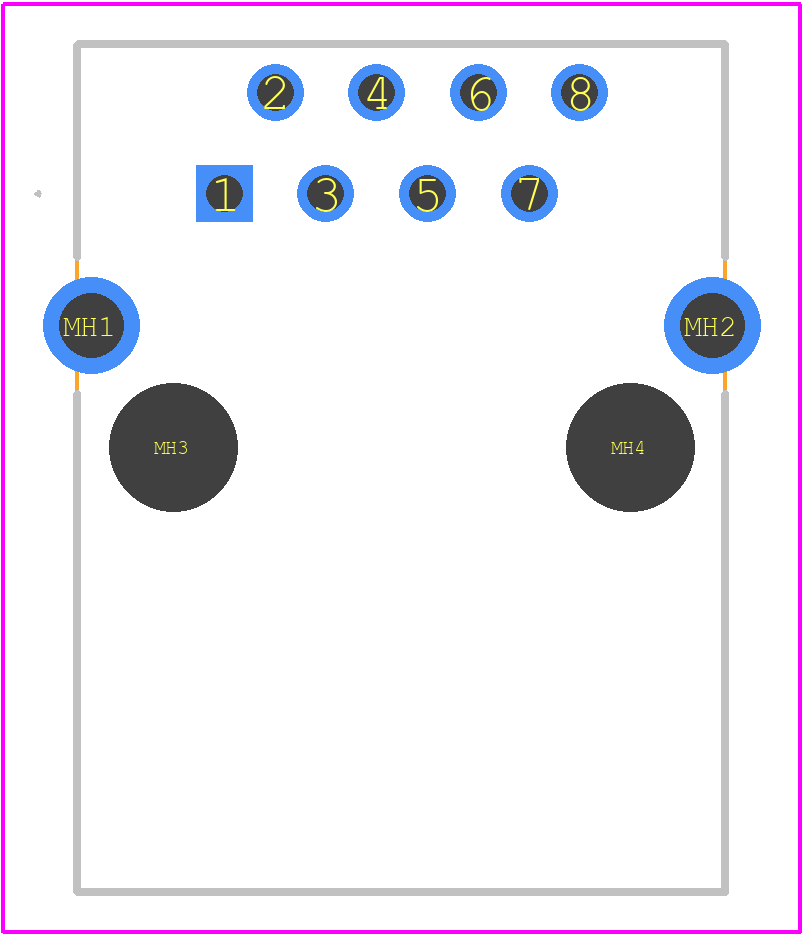

1149868 - Phoenix Contact PCB footprint - Other - Other - 1149868-3
click to zoom
3D Models
1149868 - Phoenix Contact - 3D model - Other - 1149868-3
click to zoom

1149868 Details

  • Manufacturer Part Number:

    1149868

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Phoenix Contact

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

1149868 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1149868 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1149868 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1149868 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1149868 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and outdoor applications.
  • The 1149868 has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in applications where exposure to moisture is a concern.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1149868 Overview

Use the download button to access the 1149868 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11498, or try a keyword search, such as Telecom and Datacom Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
