115-43-640-41-003000 - Mill-Max

Description: IC & Component Sockets 40P TIN PIN GLD CONT

Download 115-43-640-41-003000 Model

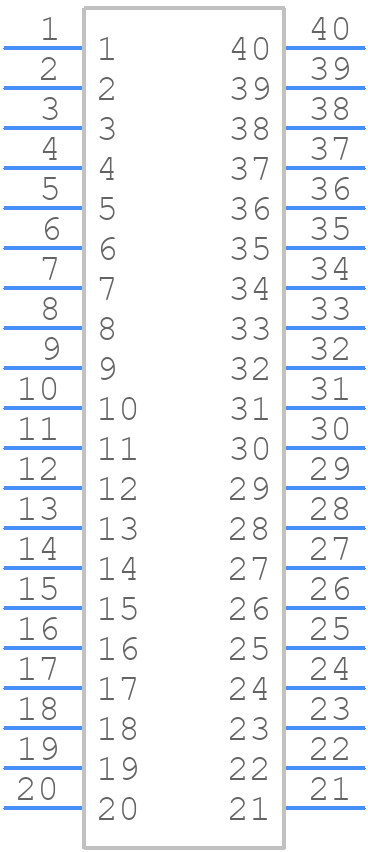

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

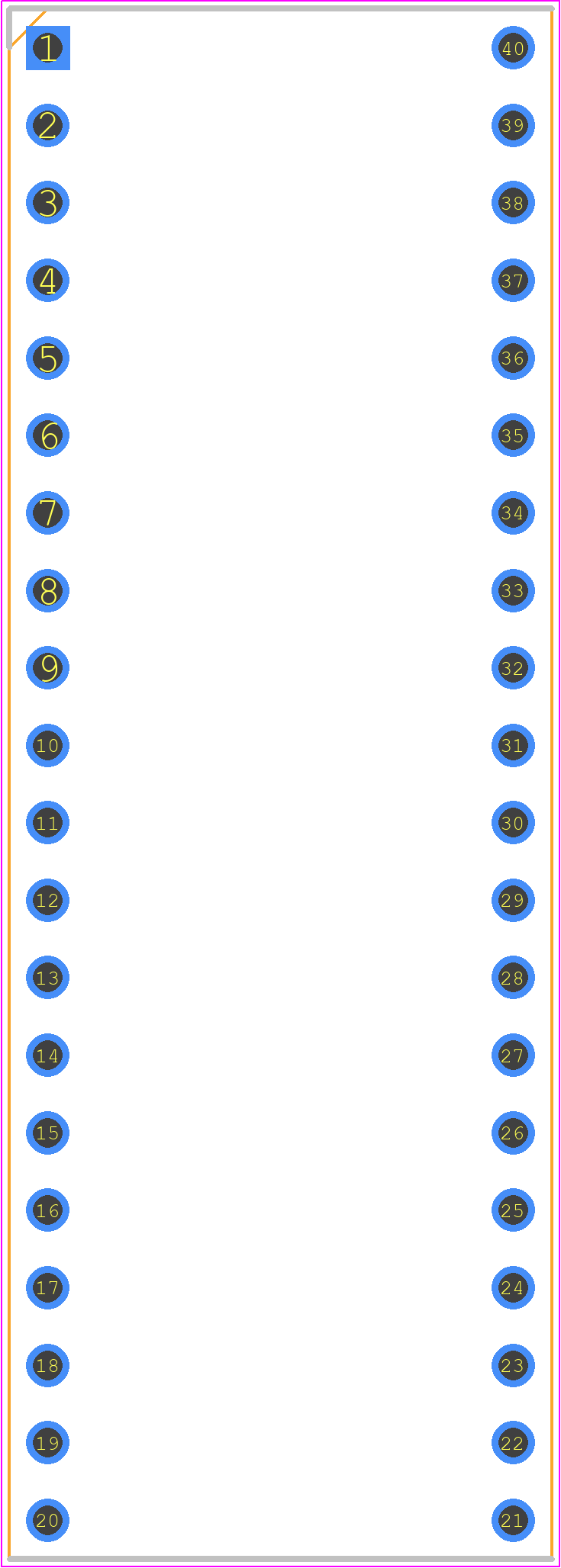

115-43-640-41-003000 - Mill-Max PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-40
click to zoom

115-43-640-41-003000 Details

  • Manufacturer Part Number:

    115-43-640-41-003000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    7.3

  • Additional Feature:

    LOW PROFILE

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP40

  • Housing Material:

    PLASTIC

  • JESD-609 Code:

    e3

  • Number of Contacts:

    40

115-43-640-41-003000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is typically between 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm), but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
  • Yes, the 115-43-640-41-003000 is designed to withstand high-vibration environments. The screw terminals are securely fastened to the PCB and the connector body, ensuring reliable connections even in harsh conditions.
  • The 115-43-640-41-003000 is rated for operating temperatures between -55°C to 125°C. However, it's essential to consider the specific application and ensure that the connector is not exposed to temperatures exceeding its rating.
  • Yes, the 115-43-640-41-003000 is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated manufacturing systems.
  • The recommended PCB layout and spacing can be found in the manufacturer's application notes or datasheet. Typically, a minimum of 1.5 mm spacing between the connector and other components is recommended to ensure proper clearance and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

115-43-640-41-003000 Overview

Use the download button to access the 115-43-640-41-003000 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 115-4, or try a keyword search, such as Sockets and Chip Carriers

Parts related to 115-43-640-41-003000

Showing 0 results

115-43-640-41-003000 Alternates

Showing results

Image Part Number Model
Part Image 115-93-640-41-003000 Mill-Max Mfg Corp

IC Socket, DIP40, 40 Contact(s)

Part Image 115-99-640-41-003000 Mill-Max Mfg Corp

IC Socket, DIP40, 40 Contact(s)

Part Image 115-93-640-41-003100 Mill-Max Mfg Corp

IC Socket, DIP40, 40 Contact(s)

Part Image 115-93-640-41-003 Mill-Max Mfg Corp

IC Socket, DIP40, 40 Contact(s), 2.54mm Term Pitch, 15.24mm Row Spacing, Solder

Part Image 115-91-640-41-003100 Mill-Max Mfg Corp

IC Socket, DIP40, 40 Contact(s)

For a full list of alternate parts for 115-43-640-41-003000, check out Findchips.com
