115-90065 - ept

Description: EPT - 115-90065 - DIN 41612 Connector, Type R/2 Series, 48 Contacts, Plug, 2.54 mm, 3 Row, a + b + c

Download 115-90065 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
115-90065 - ept - PCB symbol
click to zoom
PCB Footprints

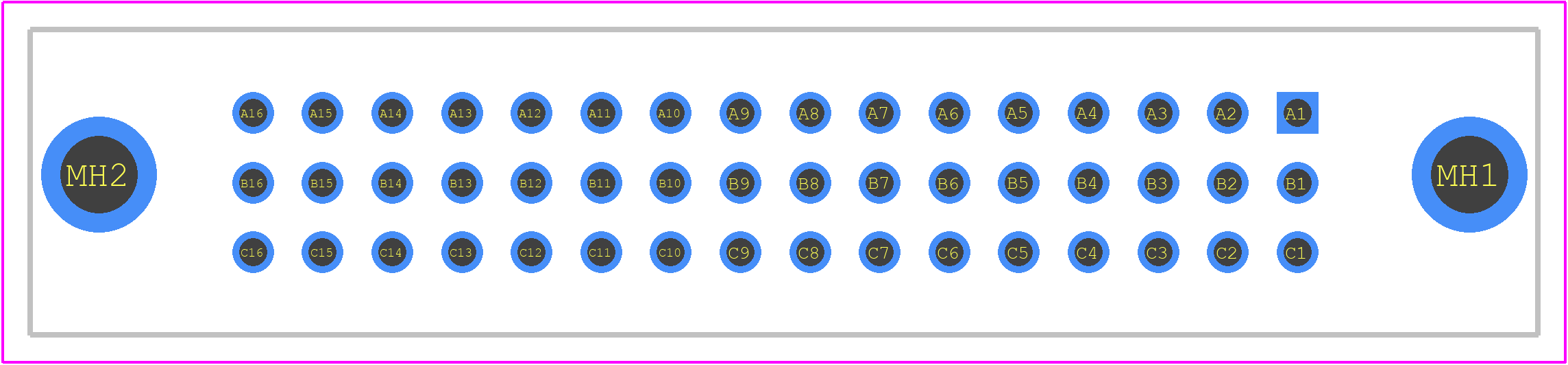

115-90065 - ept PCB footprint - Other - Other - 115-90065-1
click to zoom
3D Models
115-90065 - ept - 3D model - Other - 115-90065-1
click to zoom

115-90065 Details

  • Manufacturer Part Number:

    115-90065

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

115-90065 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
  • Yes, the 115-90065 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6). However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 115-90065 connector has an IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow the manufacturer's guidelines for outdoor use, including proper sealing and protection from extreme temperatures.
  • The 115-90065 connector has an operating temperature range of -40°C to 125°C. However, the maximum operating temperature may vary depending on the specific application and environmental conditions.
  • Yes, the 115-90065 connector is compatible with aluminum or copper-clad aluminum wires. However, it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

115-90065 Overview

Use the download button to access the 115-90065 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 115-9, or try a keyword search, such as Headers and Edge Type Connectors
