115-93-628-41-001000 footprint, schematic symbol and 3D model by Mill-Max

Symbol

click to zoom

PCB Footprints

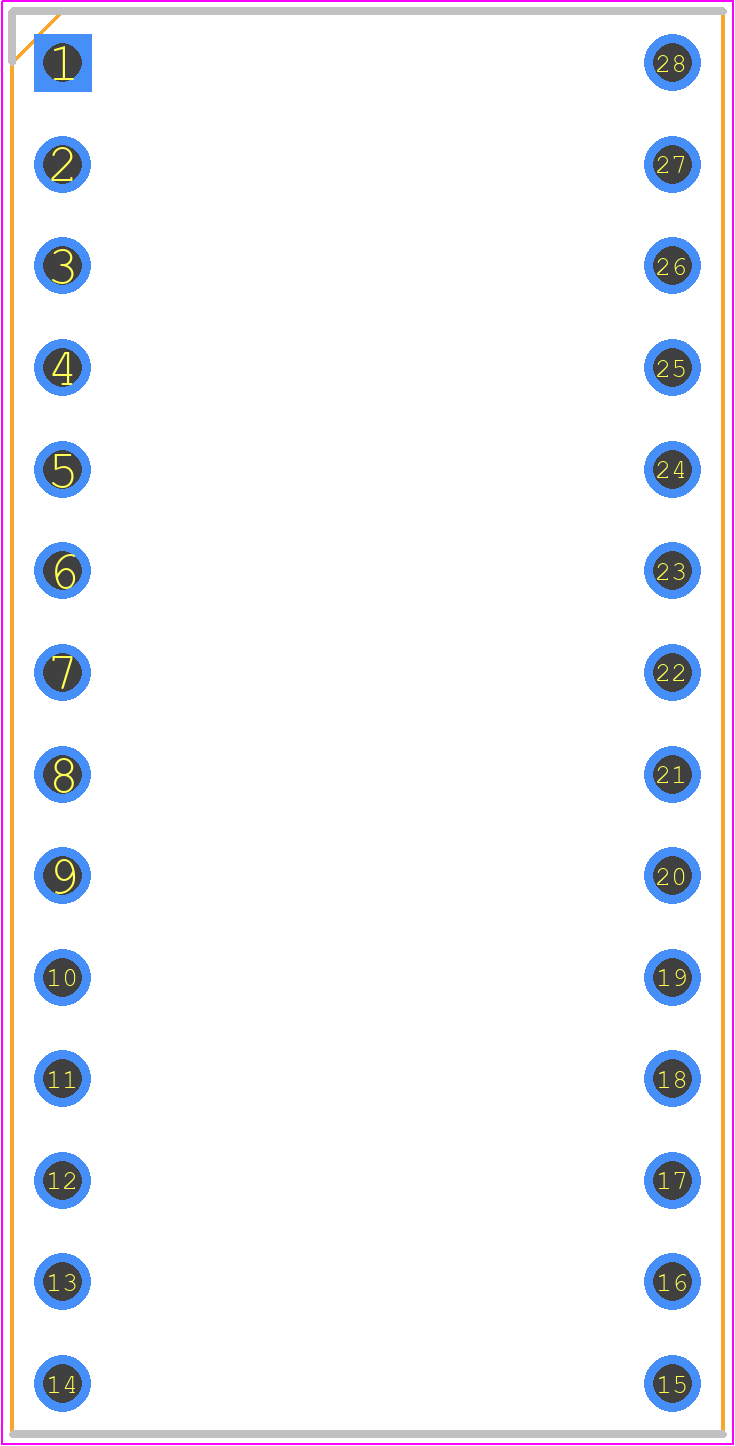

115-93-628-41-001000 - Mill-Max PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 115-93-628-41-001000

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 115-93-628-41-001000
Part Number 115-93-628-41-001000
Manufacturer Mill-Max
Pin Count 28
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 115-93-628-41-001000
Released Date Apr 28, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

115-93-628-41-001000 Details

Manufacturer Part Number:
115-93-628-41-001000
Pbfree Code:
No
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
Mill-Max Mfg Corp
YTEOL:
5.63
Additional Feature:
DIP SOCKET
Contact Configuration:
RECTANGLE
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Material:
NOT APPLICABLE
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP28
Housing Material:
POLYETHYLENE
JESD-609 Code:
e0
Number of Contacts:
28

115-93-628-41-001000 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
Yes, the 115-93-628-41-001000 connectors are designed to withstand high-vibration environments, making them suitable for applications such as aerospace, automotive, and industrial equipment.
The connectors are rated for operating temperatures between -55°C to 150°C and can withstand humid environments, but it's essential to follow proper sealing and insulation techniques to ensure reliable performance.
The connectors are rated for a minimum of 500 mating cycles, ensuring reliable connections and minimizing the risk of wear and tear.
Yes, the connectors are designed for automated assembly and can be easily integrated into pick-and-place machines and other automated manufacturing systems.

Trust Checks

Community Provided

System Verified

Community Approved

115-93-628-41-001000 Overview

Use the download button to access the 115-93-628-41-001000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 115-9, or try a keyword search, such as Sockets and Chip Carriers
