1150240000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 16, THT solder connection, Box

Download 1150240000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1150240000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

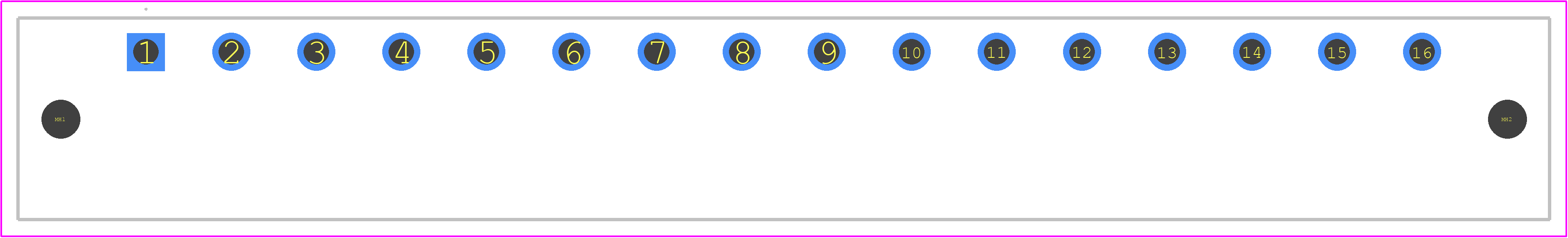

1150240000 - Weidmüller PCB footprint - Other - Other - 1150240000
click to zoom
3D Models
1150240000 - Weidmüller - 3D model - Other - 1150240000
click to zoom

1150240000 Details

  • Manufacturer Part Number:

    1150240000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1150240000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1150240000 connector is -40°C to 125°C, according to Weidmüller's specifications.
  • Yes, the 1150240000 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The mating cycle rating for the 1150240000 connector is 500 cycles, according to Weidmüller's specifications.
  • Yes, the 1150240000 connector is designed to withstand high-vibration applications, with a vibration resistance of 10g (according to IEC 60068-2-6).
  • Yes, the 1150240000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, terminals, and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1150240000 Overview

Use the download button to access the 1150240000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11502, or try a keyword search, such as Terminals and Terminal Blocks
