1155640000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 8, THT solder connection, Box

Download 1155640000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1155640000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

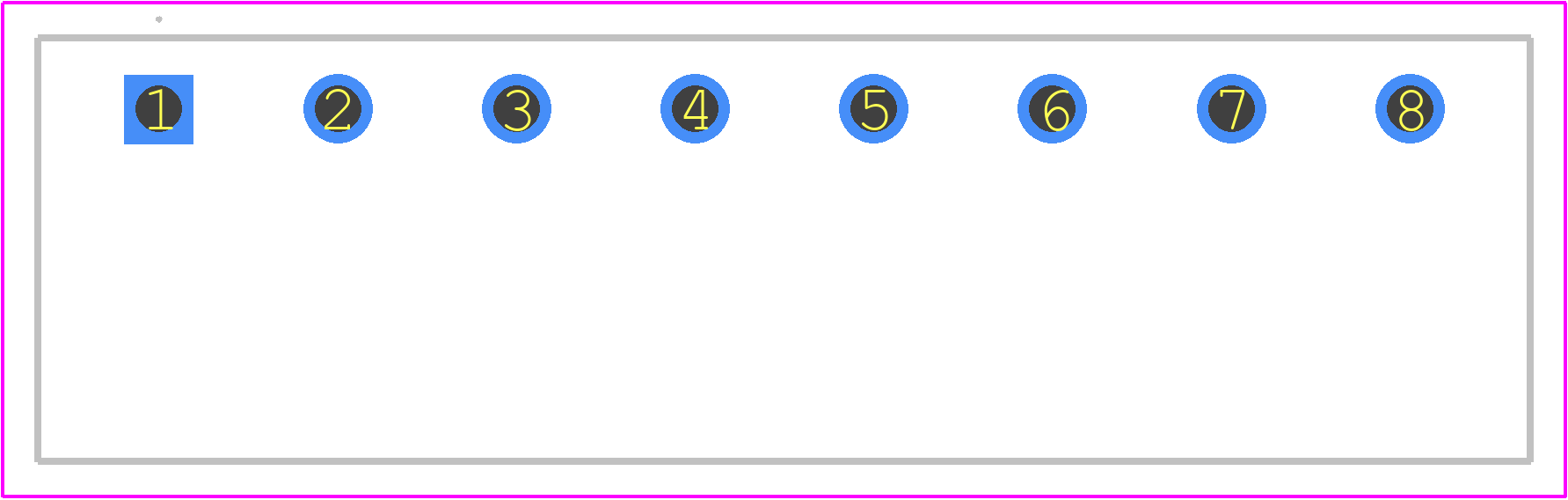

1155640000 - Weidmüller PCB footprint - Other - Other - 1155640000
click to zoom
3D Models
1155640000 - Weidmüller - 3D model - Other - 1155640000
click to zoom

1155640000 Details

  • Manufacturer Part Number:

    1155640000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1155640000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1155640000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1155640000 is RoHS and REACH compliant, meeting the European Union's regulations for hazardous substances and chemical safety.
  • The maximum current rating of the 1155640000 is 16 A per pin, according to the datasheet and Weidmüller's specifications.
  • Yes, the 1155640000 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 1155640000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.
