1156580000 - Weidmüller

Description: PCB connector (board connection), 630 V, 41 A, Pitch in mm: 7.62, Number of poles: 4, THT solder connection, Box

Download 1156580000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1156580000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

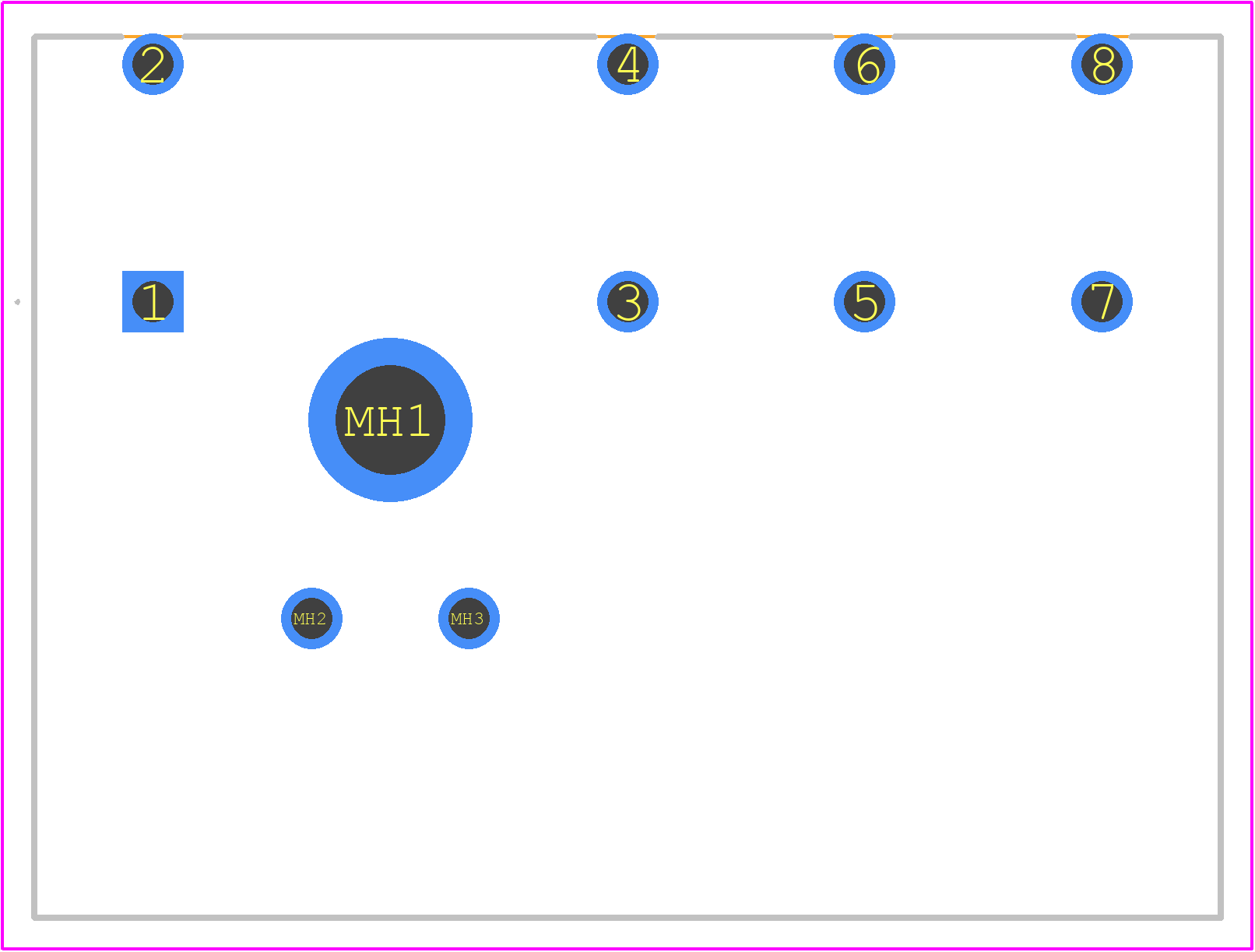

1156580000 - Weidmüller PCB footprint - Other - Other - 1156580000-3
click to zoom
3D Models
1156580000 - Weidmüller - 3D model - Other - 1156580000-3
click to zoom

1156580000 Details

  • Manufacturer Part Number:

    1156580000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1156580000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1156580000 connector is -40°C to 125°C, as specified by Weidmüller.
  • Yes, the 1156580000 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture and extreme temperatures.
  • The 1156580000 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 1156580000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 1156580000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.
