The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application and environmental conditions to determine the optimal torque value.
Yes, the 116-40074 connector is designed to withstand vibrations up to 10g, making it suitable for applications with moderate vibration levels. However, it's crucial to assess the specific vibration profile and environmental conditions to ensure the connector's reliability.
While the datasheet specifies AWG 20-24, the connector can accommodate other wire sizes with some adjustments. Consult with ept Connectors or a qualified engineer to determine the feasibility of using alternative wire sizes.
The operating temperature range for the 116-40074 connector is -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector's reliability and performance.
The 116-40074 connector is designed to withstand moderate environmental conditions. For harsh environments, it's recommended to consult with ept Connectors or a qualified engineer to determine the feasibility of using the connector in such conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
116-40074 Overview

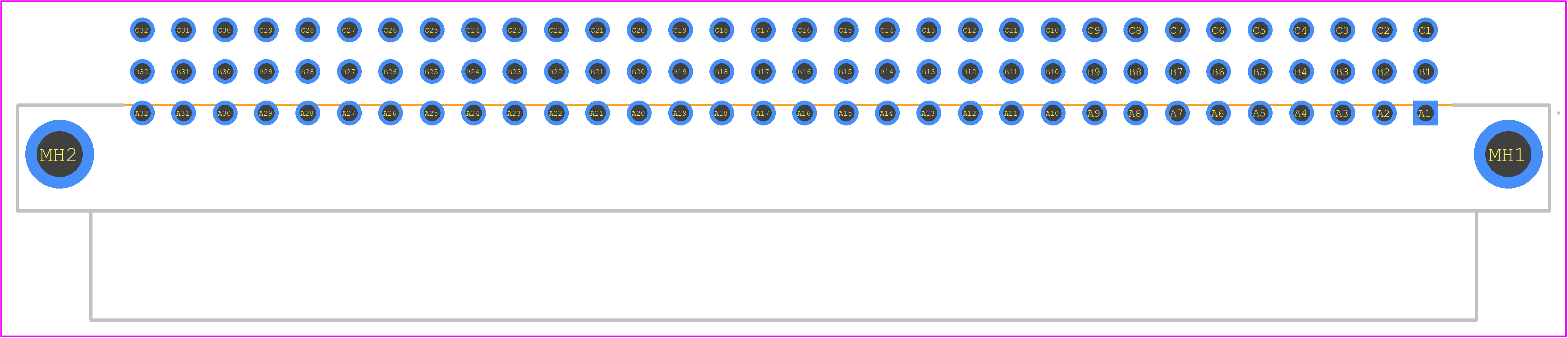

Use the download button to access the 116-40074 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 116-4,
or try a keyword search, such as Headers and Edge Type Connectors
