116-90064 footprint, schematic symbol and 3D model by ept

Symbol

click to zoom

PCB Footprints

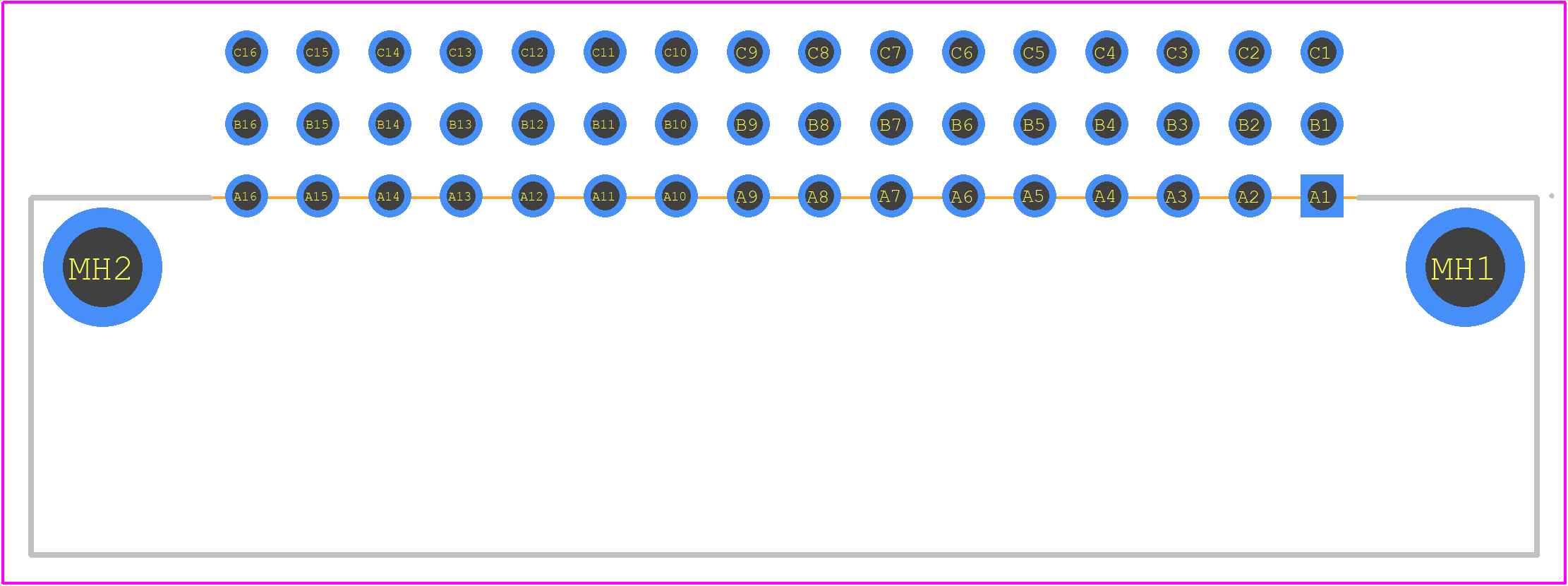

116-90064 - ept PCB footprint - Other - Other - 116-90064-3

click to zoom

3D Models

116-90064 - ept - 3D model - Other - 116-90064-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 116-90064
Part Number 116-90064
Manufacturer ept
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - 116-90064-3
Released Date Aug 18, 2023
Last Modified Date Jan 23, 2024 4:23 PM UTC
Pinout / Pin List Click Here (Member Only)

116-90064 Details

Manufacturer Part Number:
116-90064
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
ept Connectors
YTEOL:
8
Additional Feature:
STANDARDS: DIN 41612; IEC 60603-2
Body Breadth:
0.417 inch
Body Depth:
0.698 inch
Body Length:
2.101 inch
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
YES
Durability:
400 Cycles
Filter Feature:
NO
IEC Conformance:
YES
Insulation Resistance:
1000000000000 Ω
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Name of Rows Loaded:
A,B,C
Number Of Connectors:
ONE
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1.5 A
Reference Standard:
UL
Terminal Length:
0.118 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
48
Withdrawl Force-Min:
.15012 N

116-90064 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application requirements and the ept Connectors' documentation for precise guidance.
Yes, the 116-90064 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
The 116-90064 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure proper sealing and protection of the connector and cables to maintain the IP67 rating.
The 116-90064 connector is designed to operate within a temperature range of -40°C to 125°C. However, it's essential to consult the specific application requirements and the ept Connectors' documentation for precise guidance.
It's recommended to use the 116-90064 connector with ept Connectors' approved cables and connectors to ensure compatibility and optimal performance. Using cables or connectors from other manufacturers may void the warranty or compromise the connector's performance.
