1190310 - Phoenix Contact

Description: LPT 2,5/12-5,0 - Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 12, number of rows: 1, number of positions per row: 12, product range: LPT 2,5/, pitch: 5 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard

Download 1190310 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

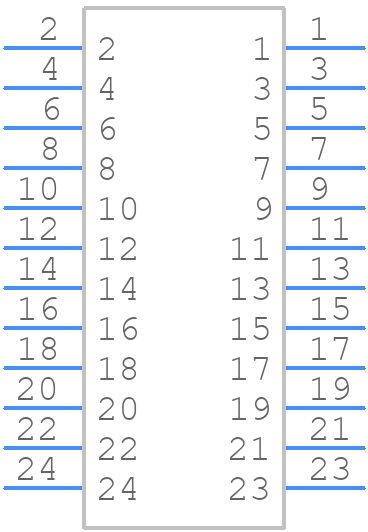

1190310 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

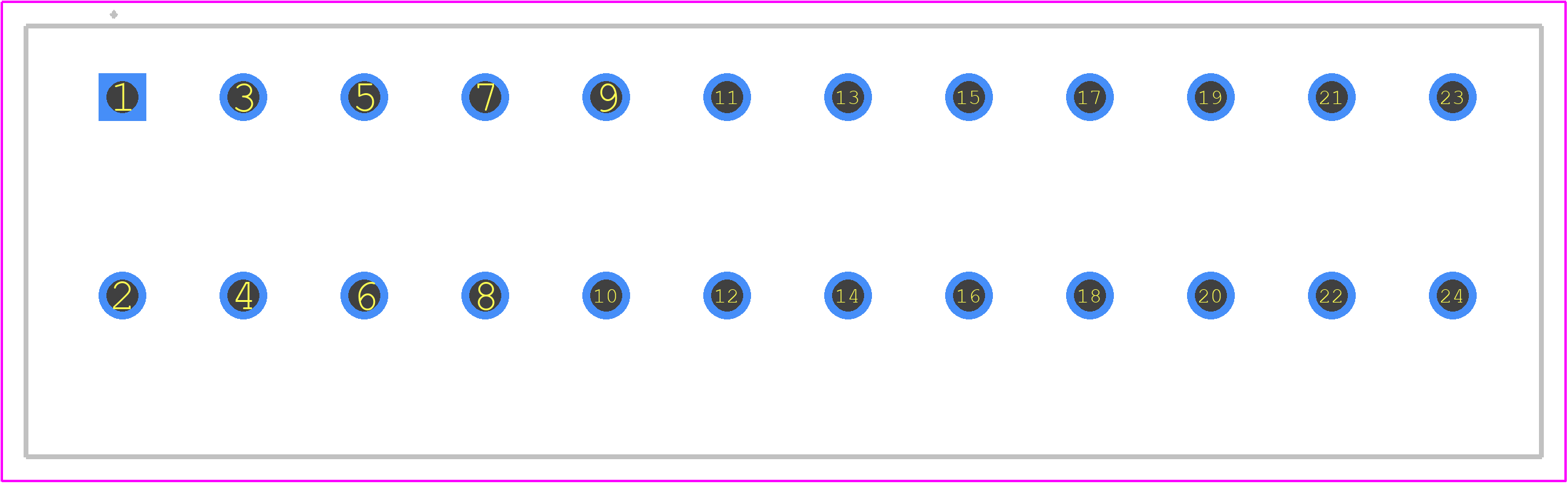

1190310 - Phoenix Contact PCB footprint - Other - Other - 1190310-1
click to zoom
3D Models
1190310 - Phoenix Contact - 3D model - Other - 1190310-1
click to zoom

1190310 Details

  • Manufacturer Part Number:

    1190310

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL;EX;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1190310 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 1190310 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) according to Phoenix Contact's application notes.
  • While the 1190310 connector is designed for industrial use, it is not specifically rated for outdoor use. However, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV radiation, and extreme temperatures using additional enclosures or protective measures.
  • While the datasheet specifies wire sizes from 0.5 mm² to 2.5 mm², it is possible to use the 1190310 connector with smaller or larger wire sizes. However, this may require additional processing steps, such as wire stripping or crimping, and may affect the connector's performance and reliability. It is recommended to consult with Phoenix Contact's technical support or a qualified engineer for specific guidance.
  • The 1190310 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and PCB connectors. However, compatibility with third-party components should be verified on a case-by-case basis, taking into account factors such as mating dimensions, electrical characteristics, and environmental requirements.
  • The expected lifespan of the 1190310 connector in a typical industrial application depends on various factors, including operating conditions, environmental factors, and maintenance practices. However, Phoenix Contact's connectors are designed to provide reliable performance for up to 10,000 mating cycles or more, depending on the specific application and usage.
