120-M-211/03 - WECO

Description: PCB Pin Header - Parallel to PCB - 3 Pole - 5mm Pitch - 10 Amp - 300V

Download 120-M-211/03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
120-M-211/03 - WECO - PCB symbol
click to zoom
PCB Footprints

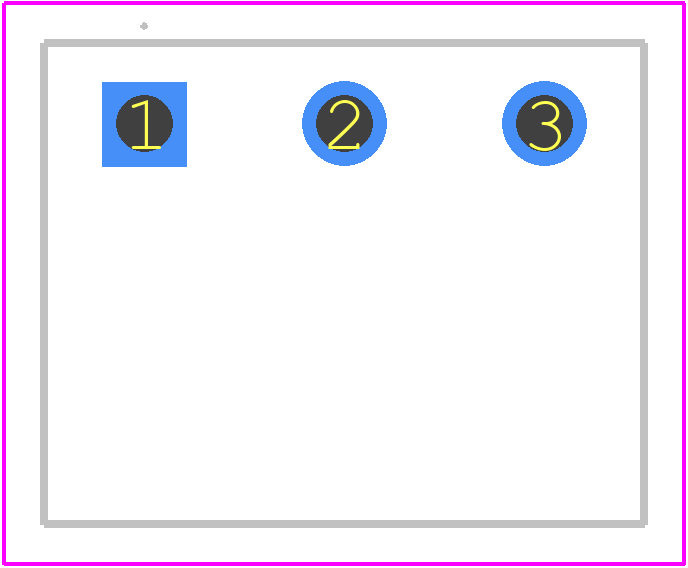

120-M-211/03 - WECO PCB footprint - Other - Other - 120-M-211/03-2
click to zoom

120-M-211/03 Details

  • Manufacturer Part Number:

    120-M-211/03

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WECO Electrical Connectors

  • Additional Feature:

    POLYAMIDE; UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

120-M-211/03 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 120-M-211/03 connector is -40°C to 125°C.
  • Yes, the 120-M-211/03 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • The mating cycle of the 120-M-211/03 connector is 500 cycles minimum.
  • Yes, the 120-M-211/03 connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the 120-M-211/03 connector is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.
