120-M-211/06 - WECO

Description: 120-M 211 Series 6 Position 5 mm Pitch Single Level Right Angle Terminal Block

Download 120-M-211/06 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
120-M-211/06 - WECO - PCB symbol
click to zoom
PCB Footprints

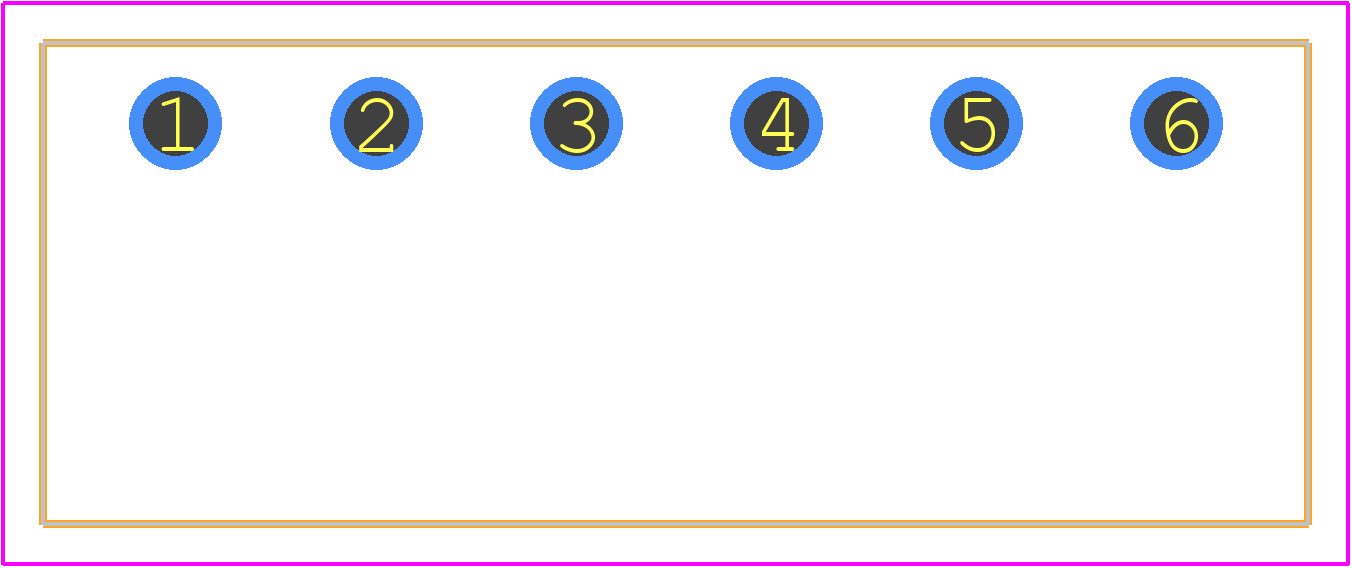

120-M-211/06 - WECO PCB footprint - Other - Other - 120-M-211/06-2
click to zoom
3D Models
120-M-211/06 - WECO - 3D model - Other - 120-M-211/06-2
click to zoom

120-M-211/06 Details

  • Manufacturer Part Number:

    120-M-211/06

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WECO Electrical Connectors

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

120-M-211/06 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
  • Yes, the connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • The maximum wire size that can be used with the 120-M-211/06 connector is 2.5 mm² (14 AWG).
  • No, the 120-M-211/06 connector is designed for low-voltage applications up to 600V AC/DC. For high-voltage applications, a different connector should be used.
  • Yes, the connector is designed to operate in temperatures ranging from -40°C to +125°C (-40°F to +257°F).
