- Part Number 120-M-211/08
- Manufacturer WECO
- Pin Count 8
- Part Category Connector
- Package Category Header, Shrouded - Right Angle PTH Box

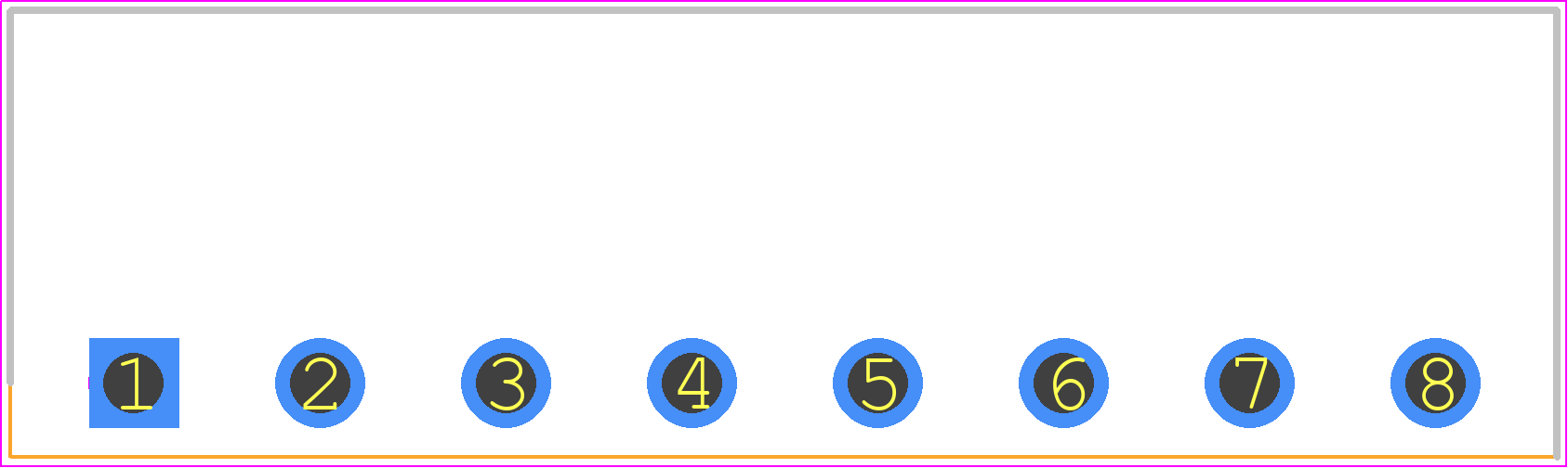

- Footprint Name Header, Shrouded - Right Angle PTH Box - 120-M-211/08
- Released Date Jan 15, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
120-M-211/08 Details
-
Manufacturer Part Number:
120-M-211/08
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
WECO Electrical Connectors
-
Additional Feature:
STANDARD: UL 94V-0, POLYAMIDE
-
Fastening Method:
CONNECTOR
-
Mounting Type:
BOARD
-
Number of Decks:
1
-
Number of Rows:
1
-
Number of Ways:
8
120-M-211/08 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screws on the 120-M-211/08 connector.
-
Yes, the 120-M-211/08 connector is suitable for outdoor use, as it has an IP67 rating, which means it can withstand exposure to water and dust.
-
Yes, the 120-M-211/08 connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G acceleration.
-
The operating temperature range of the 120-M-211/08 connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 120-M-211/08 connector can accommodate wire sizes ranging from AWG 24 to AWG 16, but the recommended wire size is AWG 20-18.
