1200S08-U - THAT CORPORATION

Description: Audio Amplifiers High-CMRR Bal Input Line Rec. 0dB SO-8

Download 1200S08-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

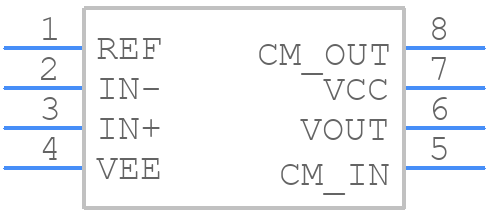

Symbol
1200S08-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints
1200S08-U - THAT CORPORATION PCB footprint - Small Outline Packages - Small Outline Packages - 1200S08-U
click to zoom
3D Models
1200S08-U - THAT CORPORATION - 3D model - Small Outline Packages - 1200S08-U
click to zoom

1200S08-U Details

  • Manufacturer Part Number:

    1200S08-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOP-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    THAT Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

1200S08-U Frequently Asked Questions (FAQs)

  • A good PCB layout for the 1200S08-U involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground layer is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V supply, and the VEE pin to a stable -5V supply. The ISET pin should be connected to a 10kΩ resistor to set the internal bias current. Additionally, decouple the VCC and VEE pins with 10uF capacitors to ground.
  • The 1200S08-U can handle input signal amplitudes up to 2.5Vrms (7.07Vp-p) without distortion or clipping. However, it's recommended to keep the input signal amplitude below 2Vrms to ensure optimal performance and minimize distortion.
  • For differential input operation, connect the IN+ and IN- pins to the differential input signal. For single-ended input operation, connect the IN+ pin to the input signal and the IN- pin to ground. In both cases, ensure the input impedance is matched to the device's input impedance (typically 20kΩ).
  • The recommended output load impedance for the 1200S08-U is 2kΩ or higher. A lower output load impedance may result in reduced output voltage swing and increased distortion.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1200S08-U Overview

Use the download button to access the 1200S08-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1200S, or try a keyword search, such as Other Signal Circuits
