1206S08-U - THAT CORPORATION

Description: • High CMRR: typ. 90 dB at 60 Hz • Extremely high common-mode input impedance • Maintains balance under real-world conditions • Transformer-like performance in an IC • Excellent audio performance • Wide bandwidth: typ. > 22 MHz • High slew rate: typ. 12 V/us • Low distortion: typ. 0.0005 % THD • Low noise: typ. -106 dBu • Several gains: 0 dB, -3 dB, & -6 dB

Download 1206S08-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

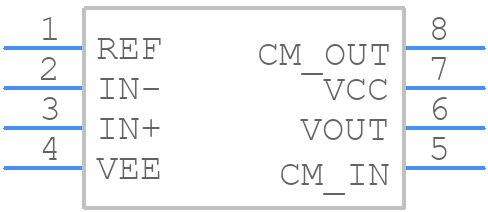

Symbol
1206S08-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints
1206S08-U - THAT CORPORATION PCB footprint - Small Outline Packages - Small Outline Packages - 1200S08-U
click to zoom
3D Models
1206S08-U - THAT CORPORATION - 3D model - Small Outline Packages - 1200S08-U
click to zoom

1206S08-U Details

  • Manufacturer Part Number:

    1206S08-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOP-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    THAT Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

1206S08-U Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace lengths is recommended. Keep analog and digital signals separate and avoid crossing them over each other.
  • The 1206S08-U requires a dual power supply (±5V to ±15V) and a bias voltage (VCC) of 5V to 10V. Ensure the bias voltage is stable and noise-free, and that the power supplies are well-regulated and decoupled.
  • The 1206S08-U can handle input signal levels up to ±10V peak-to-peak. Exceeding this may result in distortion, clipping, or damage to the device.
  • Use a well-regulated power supply, decouple the power pins with capacitors, and keep the analog and digital grounds separate. Also, use shielding and grounding techniques to minimize electromagnetic interference (EMI).
  • Yes, but with some limitations. The 1206S08-U can be used in a single-supply application, but the input signal range will be limited to 0V to VCC. Additionally, the output signal will be referenced to VCC/2, and the output voltage swing will be reduced.
