Aptiv recommends a 4-layer PCB with a solid ground plane, and a minimum of 10 mils of clearance around the component. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat.
Aptiv recommends securing the component to the PCB using a suitable adhesive or mechanical fastening method. Additionally, ensure that the PCB is properly secured to the chassis or enclosure to minimize vibration transfer.
The 12092320 has a maximum junction temperature of 150°C. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce thermal resistance. Avoid overheating, as it can lead to reduced lifespan or failure.
Yes, the 12092320 is sensitive to electrostatic discharge (ESD). Handle the component in an ESD-controlled environment, and ensure that your PCB design includes ESD protection devices, such as TVS diodes or ESD arrays, to protect the component from voltage surges.
Store the 12092320 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the component by the body, avoiding touching the pins or electrical contacts. Use anti-static wrist straps or mats when handling the component to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
12092320 Overview

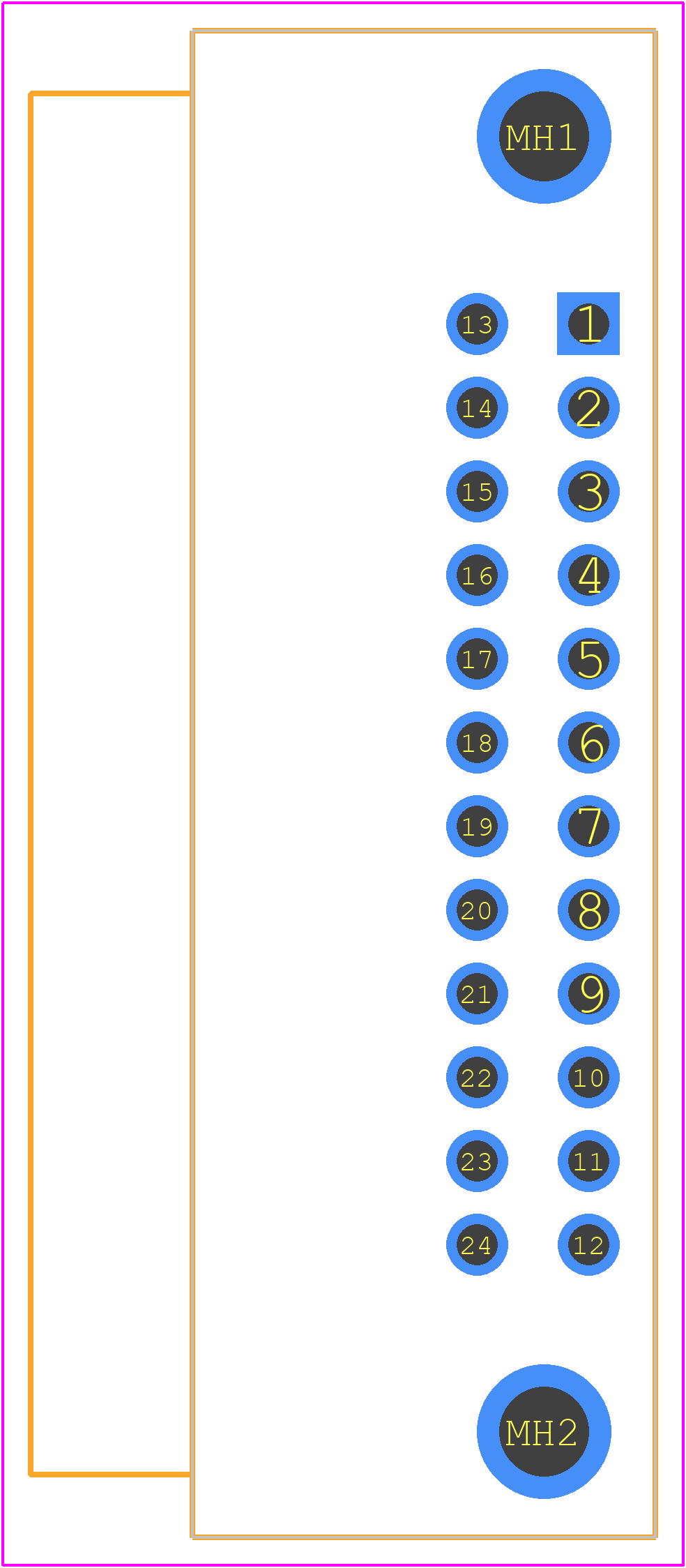

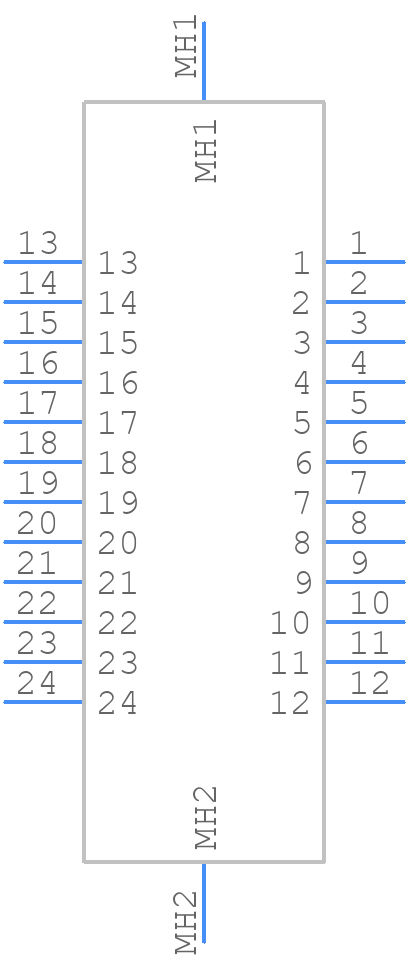

Use the download button to access the 12092320 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 12092,
or try a keyword search, such as Combination Line Connectors
