120943-4 - TE Connectivity

Description: Configuration Features: Number of Rows 1 | Number of Power Positions 6 | Number of Signal Positions 0 | PCB Mount Orientation Right Angle | Number of Positions 6 | Contact Features: Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness 19.68 – 49.21 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Retention Within Housing With | Contact Underplating Material Nickel | Contact Type Receptacle | Contact Mating Area Plating Material Thickness .5 – 1.25

Download 120943-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

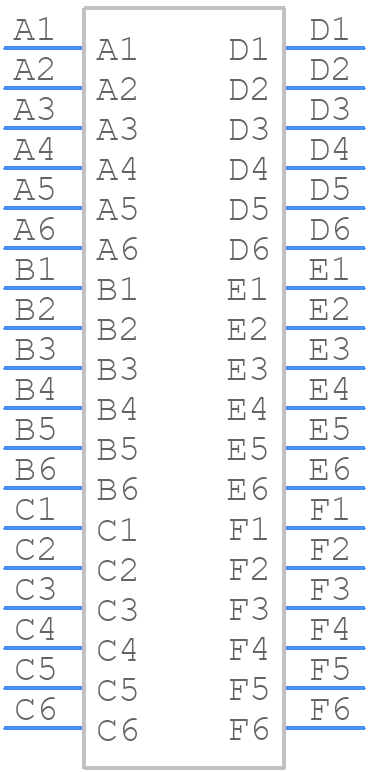

120943-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

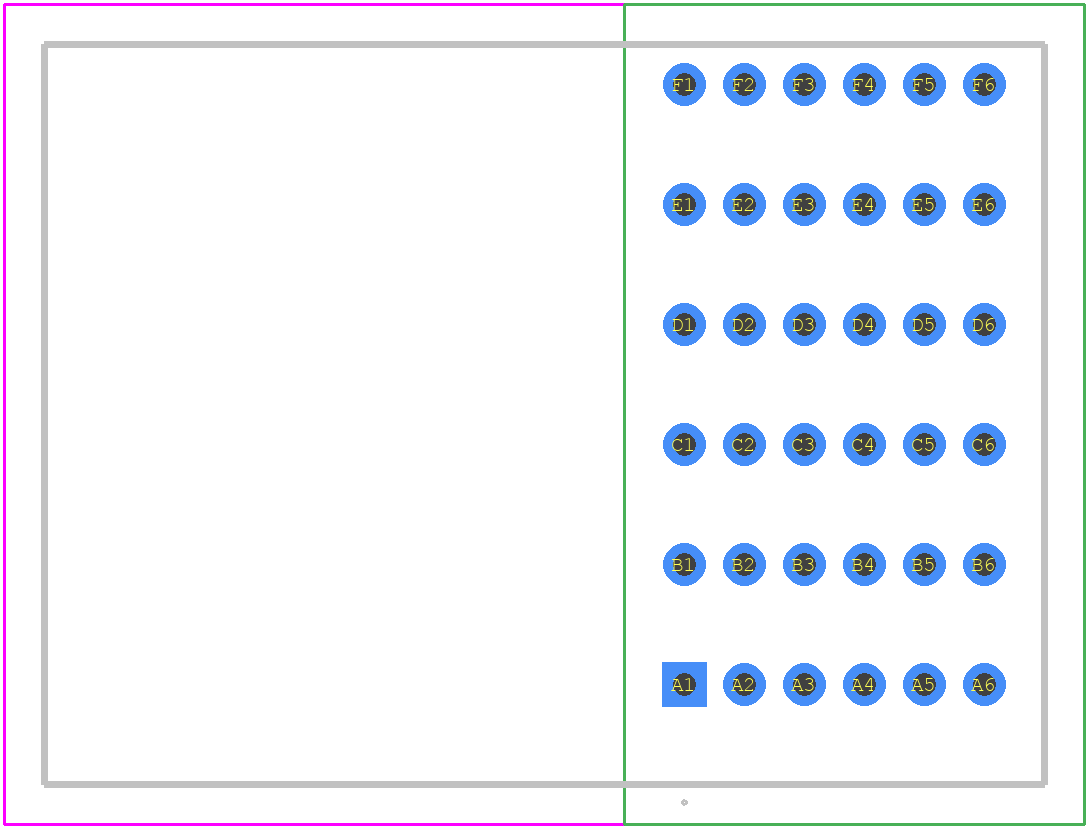

120943-4 - TE Connectivity PCB footprint - Other - Other - 120943-4-1
click to zoom
3D Models
120943-4 - TE Connectivity - 3D model - Other - 120943-4-1
click to zoom

120943-4 Details

  • Manufacturer Part Number:

    120943-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.27

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    16A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    49.21u inch

  • Rated Current (Signal):

    16 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

120943-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 120943-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines.
  • The 120943-4 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 120943-4 connector is designed to meet IP67 standards, providing protection against dust and water ingress. However, it's essential to evaluate the specific environmental conditions and consider additional protection measures, such as conformal coatings or sealing, to ensure reliable performance in harsh environments.
