1210A-005D-3S - TE Connectivity

Description: Board Mount Pressure Sensors 0-005psid 0-100mV Short Port

Download 1210A-005D-3S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

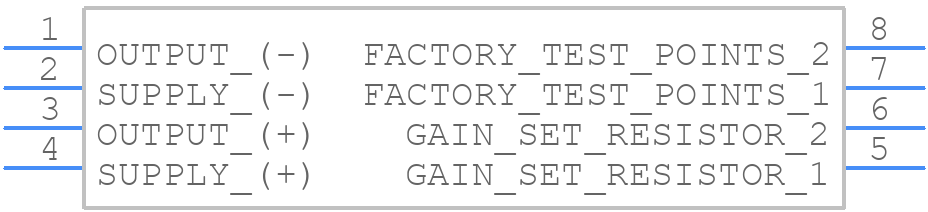

Symbol
1210A-005D-3S - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1210A-005D-3S - TE Connectivity PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 1210A-005D-3S
click to zoom
3D Models
1210A-005D-3S - TE Connectivity - 3D model - Dual-In-Line Packages - 1210A-005D-3S
click to zoom

1210A-005D-3S Details

  • Manufacturer Part Number:

    1210A-005D-3S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, DIP-8

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    RATIOMETRIC TO SUPPLY CURRENT

  • Body Breadth:

    14.73 mm

  • Body Height:

    12.5 mm

  • Body Length or Diameter:

    15.24 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Current-Max:

    2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0-100mV

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    5 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

1210A-005D-3S Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 1210A-005D-3S is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The 1210A-005D-3S has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
  • The 1210A-005D-3S has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • While the 1210A-005D-3S is designed for use with 20 AWG wire, it can accommodate wire sizes from 18 AWG to 22 AWG. However, the wire stripping length and insulation diameter may need to be adjusted accordingly.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1210A-005D-3S Overview

Use the download button to access the 1210A-005D-3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1210A, or try a keyword search, such as Pressure Sensors
