1210A-015A-3S - TE Connectivity

Description: Board Mount Pressure Sensors 0-15psia 0-100mV Short Port

Download 1210A-015A-3S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

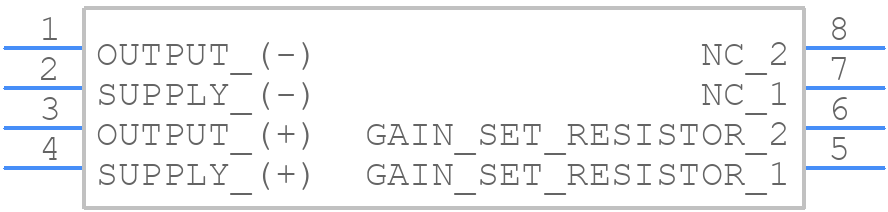

1210A-015A-3S - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

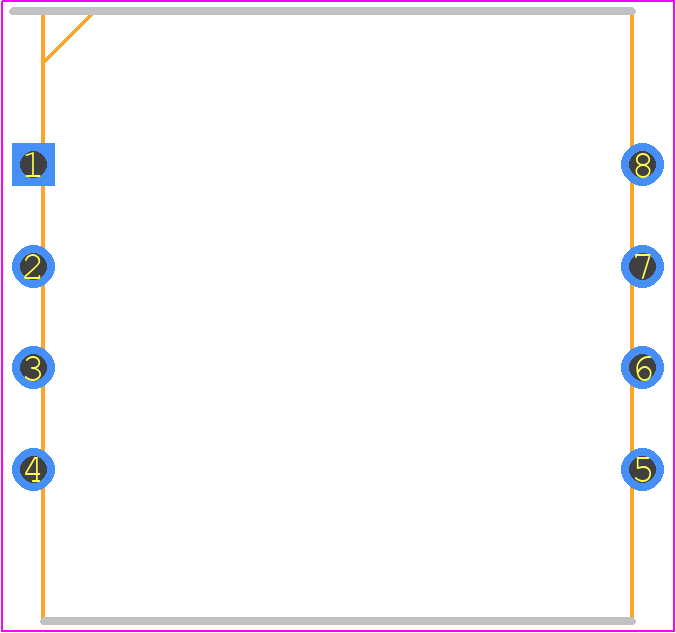

1210A-015A-3S - TE Connectivity PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 1210A-005D-3S
click to zoom
3D Models
1210A-015A-3S - TE Connectivity - 3D model - Dual-In-Line Packages - 1210A-005D-3S
click to zoom

1210A-015A-3S Details

  • Manufacturer Part Number:

    1210A-015A-3S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    RATIOMETRIC TO SUPPLY CURRENT

  • Body Breadth:

    14.73 mm

  • Body Height:

    12.5 mm

  • Body Length or Diameter:

    15.24 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Current-Max:

    2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0-100mV

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    15 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

1210A-015A-3S Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 1210A-015A-3S connector is designed to withstand high-vibration environments and meets the IEC 61373 Cat 1, Class B standard for vibration resistance.
  • Yes, the 1210A-015A-3S connector is designed to operate in harsh environments and meets the IEC 60068-2-52 standard for salt spray resistance and IEC 60068-2-78 standard for humidity resistance.
  • The maximum operating temperature range for the 1210A-015A-3S connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 1210A-015A-3S connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the EU's environmental regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1210A-015A-3S Overview

Use the download button to access the 1210A-015A-3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1210A, or try a keyword search, such as Pressure Sensors
