1217AS-H-220M=P3 Frequently Asked Questions (FAQs)

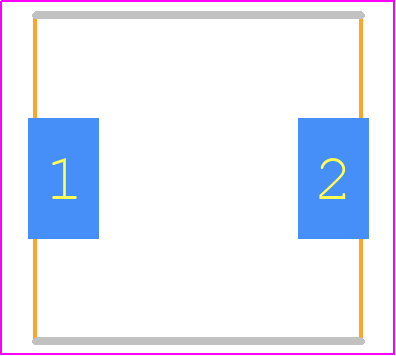

• What is the recommended land pattern for this inductor?
  The recommended land pattern for the 1217AS-H-220M=P3 inductor is a rectangular pad with a size of 1.2mm x 1.7mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a clearance of at least 0.2mm from the component body.
• How do I handle the inductor's thermal considerations?
  The 1217AS-H-220M=P3 inductor has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management in your design. This includes providing adequate airflow, using thermal vias, and selecting a suitable PCB material with good thermal conductivity.
• What is the inductor's self-resonant frequency (SRF)?
  The self-resonant frequency (SRF) of the 1217AS-H-220M=P3 inductor is not explicitly stated in the datasheet. However, based on similar inductors from Murata, the SRF is typically in the range of 100-200 MHz. It's essential to consider the SRF when designing filters or impedance-matching networks.
• Can I use this inductor in a high-vibration environment?
  The 1217AS-H-220M=P3 inductor is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, shock, or mechanical stress, you should consider using a more robust inductor or taking additional measures to secure the component, such as using a vibration-dampening material or a more robust PCB design.
• How do I ensure the inductor's reliability in a humid environment?
  To ensure the reliability of the 1217AS-H-220M=P3 inductor in a humid environment, it's essential to follow proper storage and handling procedures. This includes storing the components in a dry, clean environment, and using a moisture barrier bag or desiccant to control humidity. Additionally, consider using a conformal coating or potting compound to protect the inductor from moisture ingress.
