1217AS-H-3R3N=P3 - Murata Electronics

Description: DEM8045C Series Inductor 3.3μH ±30% 3131 (8080)

Download 1217AS-H-3R3N=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1217AS-H-3R3N=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

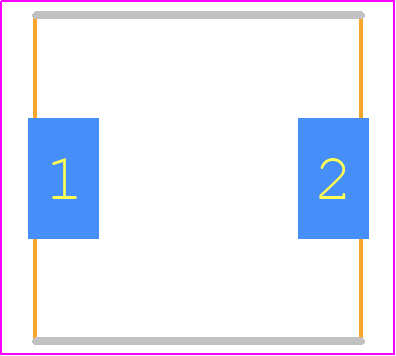

1217AS-H-3R3N=P3 - Murata Electronics PCB footprint - Other - Other - 3131 (8080) T=4.5mm
click to zoom
3D Models
1217AS-H-3R3N=P3 - Murata Electronics - 3D model - Other - 3131 (8080) T=4.5mm
click to zoom

1217AS-H-3R3N=P3 Details

  • Manufacturer Part Number:

    1217AS-H-3R3N=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    3131

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0144 Ω

  • Inductance-Nom (L):

    3.3 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4.5 mm

  • Package Length:

    8 mm

  • Package Style:

    SMT

  • Package Width:

    8 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    6.8 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DCR MEASURED AT 20%TOLERANCE

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

1217AS-H-3R3N=P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 1217AS-H-3R3N=P3 capacitor is between 230°C to 250°C for a maximum of 3 seconds.
  • Yes, the 1217AS-H-3R3N=P3 capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The 1217AS-H-3R3N=P3 capacitor is rated for operation up to 125°C, but it's not recommended for use in environments above 125°C without derating the voltage and current ratings.
  • Yes, the 1217AS-H-3R3N=P3 capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The recommended land pattern for the 1217AS-H-3R3N=P3 capacitor is a rectangular pad with a size of 1.4mm x 0.8mm, with a solder mask clearance of 0.2mm.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1217AS-H-3R3N=P3 Overview

Use the download button to access the 1217AS-H-3R3N=P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1217A, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
